Fastened spacing values have grow to be 2nd nature in internet design. Your web site appears nice to your pc, but if any individual perspectives it on a bigger observe, the whole lot falls aside. You modify spacing for more than a few breakpoints, however you might be nonetheless guessing.

There’s a greater method: fluid spacing ramps. Those scales proportionally throughout each display screen dimension, retaining your design balanced with out guide tweaking. On this information, we’ll display you the right way to construct any such fluid spacing ramp in Divi 5. Right here’s what you wish to have to grasp.

What Is A Fluid Spacing Ramp And What Does It Do?

A fluid spacing ramp is a scientific set of spacing values that scale proportionally throughout display screen sizes. Maximum designers use fastened values: 16px padding on cellular, 24px on pill, 32px on desktop.

Those create visual jumps when the viewport hits each and every breakpoint. It additionally doesn’t account for software sizes between those breakpoints, comparable to a smaller pill or telephones in panorama, which leads to awkward gaps.

Fluid spacing ramps get rid of the ones jumps. They use the CSS clamp() serve as to outline 3 values: a minimal dimension, a most well-liked (fluid) worth, and a most dimension.

Clamp() guarantees that spacing stays fluid and proportional, without reference to whether or not any individual perspectives your website online at 375px or 2560px. This prevents awkward gaps on ultrawide displays and cramped layouts on extraordinary pill sizes.

This additionally removes determination inertia. As an alternative of defining spacing at a couple of breakpoints, you outline it as soon as with clamp(). The serve as handles the remainder.

How Divi 5 Makes Fluid Spacing Ramps Conceivable

Divi 5 brings an entire overhaul to responsive design. We’ve expanded from 3 breakpoints to seven customizable ones, supplying you with regulate over how websites glance on the whole lot from compact telephones to ultrawide displays. Then again, a key part that allows fluid spacing ramps to paintings is Advanced Units.

This selection permits the entire vary of recent CSS gadgets and purposes for use at once inside the Visible Builder. Customized code remains within the drawer. Numeric enter fields in Divi 5 now settle for viewport gadgets like vw and vh, relative gadgets like rem and em, and purposes like calc() and clamp().

Click on right into a spacing or sizing box, and also you’ll see a dropdown with all to be had gadgets. Make a choice clamp(), input your minimal, most well-liked, and most values, and watch your spacing adapt in actual time. The Visible Builder presentations you precisely the way it appears as you construct.

The workflow shifts utterly. As an alternative of atmosphere fastened values at a couple of breakpoints, you outline fluid spacing as soon as. A padding worth of clamp(20px, 3vw, 40px) scales mechanically throughout each display screen dimension. Blended with Design Variables, you’ll create a complete spacing device that remains constant and adapts with out guide changes.

Developing A Fluid Spacing Ramp In Divi 5

The Visible Builder, Design Variables, and Complex Devices all paintings in combination to fortify fluid spacing. However gaining access to those options doesn’t mechanically create a spacing device. So, let’s check out how you’ll construct a fluid spacing ramp in Divi 5.

Determine Out Your Spacing Values

Get started through figuring out your minimal and most barriers. Your minimal values outline the spacing at cellular widths, most often starting from 320px to 480px. For cellular, margins would possibly vary from 16px to 24px, whilst tighter padding sits round 8px to 16px. Those stay layouts compact with out feeling cramped.

Most values practice at desktop widths, generally 1200px and above. Desktop displays may just use margins of 80px to 120px, with padding scaling proportionally. Content material-heavy blogs want beneficiant desktop spacing between sections, so plan maximums round 64px to 80px. This provides textual content room to respire.

Portfolio websites paintings another way. You wish to have extra content material visual, so most values keep tighter at 32px to 48px. eCommerce websites steadiness between those. Product grids require enough separation to really feel distinct, however now not such a lot that fewer pieces are visual above the fold.

Plan and word down 5 to seven spacing tiers. Label them merely: house small, house medium, house considerable. Small might vary from 8px to 24px. Medium scales 16px to 48px. Huge runs 32px to 80px. Come to a decision on those levels ahead of opening Divi.

Set Up Design Variables

Open the Visible Builder and find the Variable Supervisor icon within the most sensible toolbar. Click on it to get right of entry to the site the place all Design Variables are saved and controlled. That is the place the ones spacing tiers you deliberate previous grow to be reusable values throughout your website online.

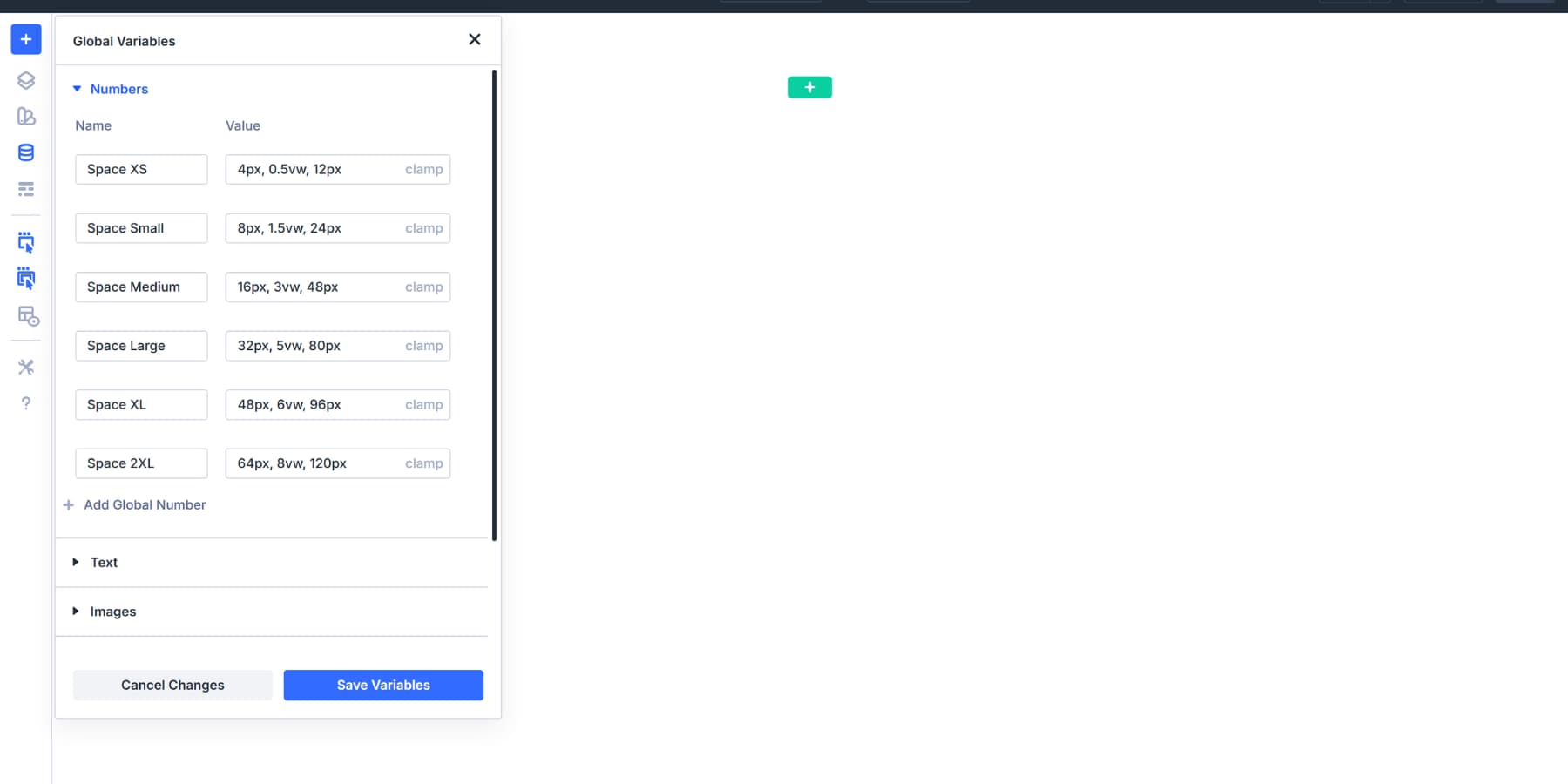

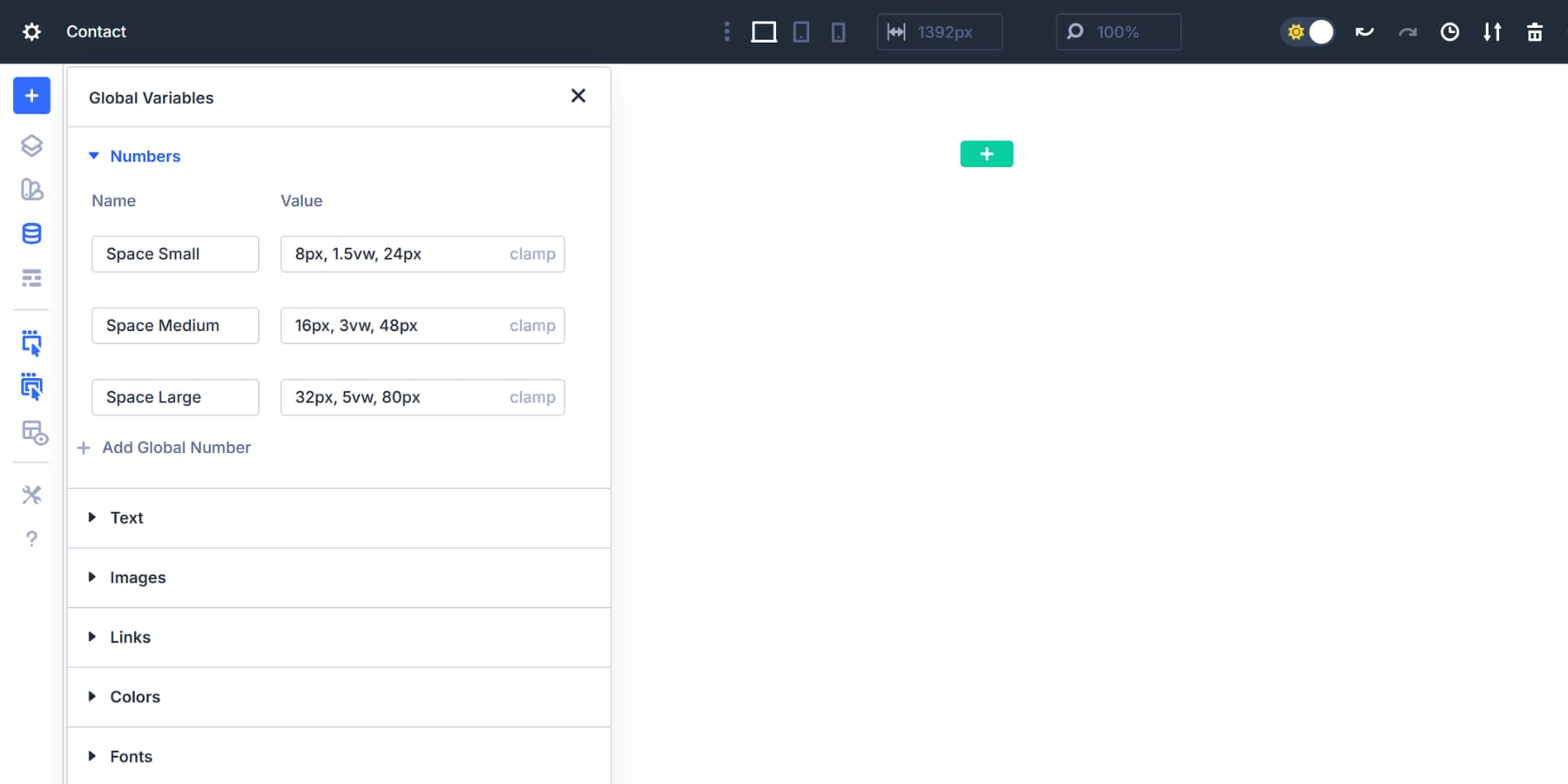

Throughout the Numbers tab, click on so as to add a brand new variable. Now, take the ones levels you mapped out and convert them into clamp formulation. Each and every tier turns into one variable. You will have to title variables obviously. Somebody opening your website online later will have to perceive what the distance medium does with no need to make an informed bet:

Area Small

Price: clamp(8px, 1.5vw, 24px)

This scales from 8px at cellular to 24px at desktop. Use it for padding inside of buttons, gaps between icons, or respiring room round small textual content parts. The 1.5vw scaling helps to keep enlargement delicate and regulated.

Area Medium

Price: clamp(16px, 3vw, 48px)

Begins at 16px, scales at 3% of viewport width, caps at 48px. Absolute best for padding inside of playing cards, spacing between paragraphs, or margins round photographs. The doubled scaling charge from house small creates a transparent visible hierarchy.

Area Huge

Price: clamp(32px, 5vw, 80px)

Handles larger gaps between content material blocks, phase padding, or margins that separate distinct web page spaces. The 5vw charge helps to keep proportions proper even on ultrawide displays.

Area XS (not obligatory)

Price: clamp(4px, 0.5vw, 12px)

Micro spacing for tight eventualities. The space between an icon and its label, padding in compact UI parts, or house round inline content material. The 0.5vw charge prevents those main points from rising an excessive amount of.

Area XL (not obligatory)

Price: clamp(48px, 6vw, 96px)

Beneficiant respiring room for main web page sections or hero house padding. The 6vw scaling creates considerable desktop spacing with out crushing cellular layouts.

Area 2XL (not obligatory)

Price: clamp(64px, 8vw, 120px)

Most affect for homepage heroes or main touchdown web page divisions. Use sparingly. The 8vw charge makes those sections dramatic on massive presentations whilst staying cheap on telephones.

Each and every clamp system follows the similar construction. The primary quantity is your cellular baseline. The center worth with vw controls how briskly spacing grows. The overall quantity is your desktop ceiling. Those fit the levels you made up our minds to your making plans segment.

The minimal and most values in each and every clamp system come at once out of your making plans paintings. When you make a decision the distance will have to vary from 8px to 24px, the ones precise numbers grow to be the primary and remaining values within the system.

The center vw worth controls how easily you progress between them. If you wish to have the worth to achieve its most round a selected viewport width, base your most well-liked worth to your selected min and max viewport widths. A clamp calculator permit you to generate correct values.

This is helping you music when the spacing approaches its most on higher displays. Other website online varieties use other scaling speeds in response to what you deliberate: content-heavy blogs would possibly push maximums upper and use quicker vw charges, whilst minimum portfolios stay them tighter for subtler enlargement.

Upload Them To Sections And Modules

Whenever you’ve created spacing variables, they want to be implemented all over your website online. The Visible Builder makes this simple during the dynamic content material device, however figuring out the place to use which spacing values makes the variation between a cohesive design and a scattered one.

You’ll be able to upload those variables by the use of the Insert Dynamic Content material button. This icon seems subsequent to each spacing box, revealing a dropdown of your stored variables when clicked.

This works for each facet. Sections, rows, columns, and modules all use the similar dynamic content material device. You don’t want to memorize other interfaces or workflows for different component varieties.

Practice Hole Spacing To Flexbox Layouts

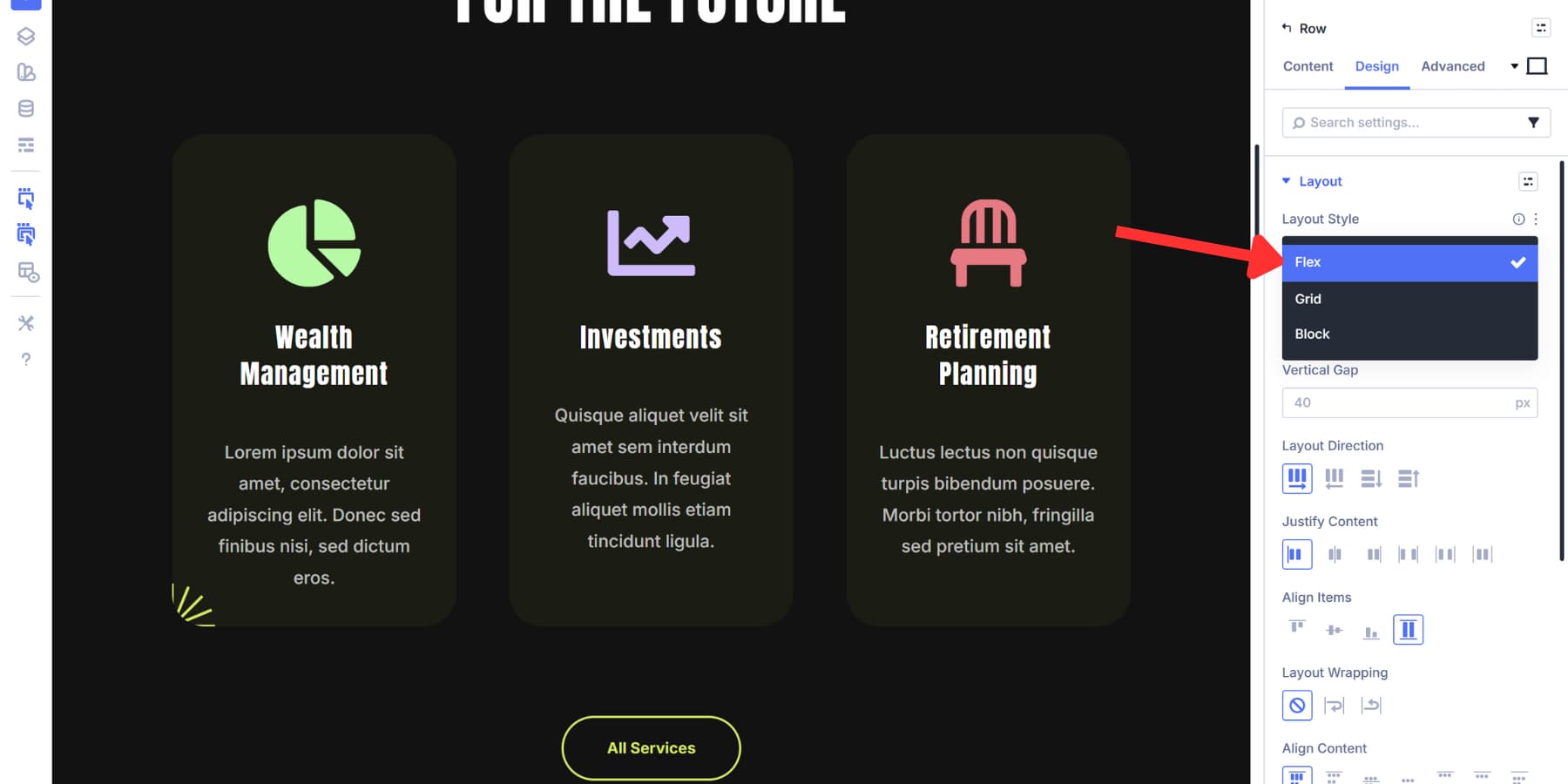

Set your phase or row’s Format Taste to Flex to permit hole controls. You’ll to find Horizontal Hole and Vertical Hole fields below the Format settings.

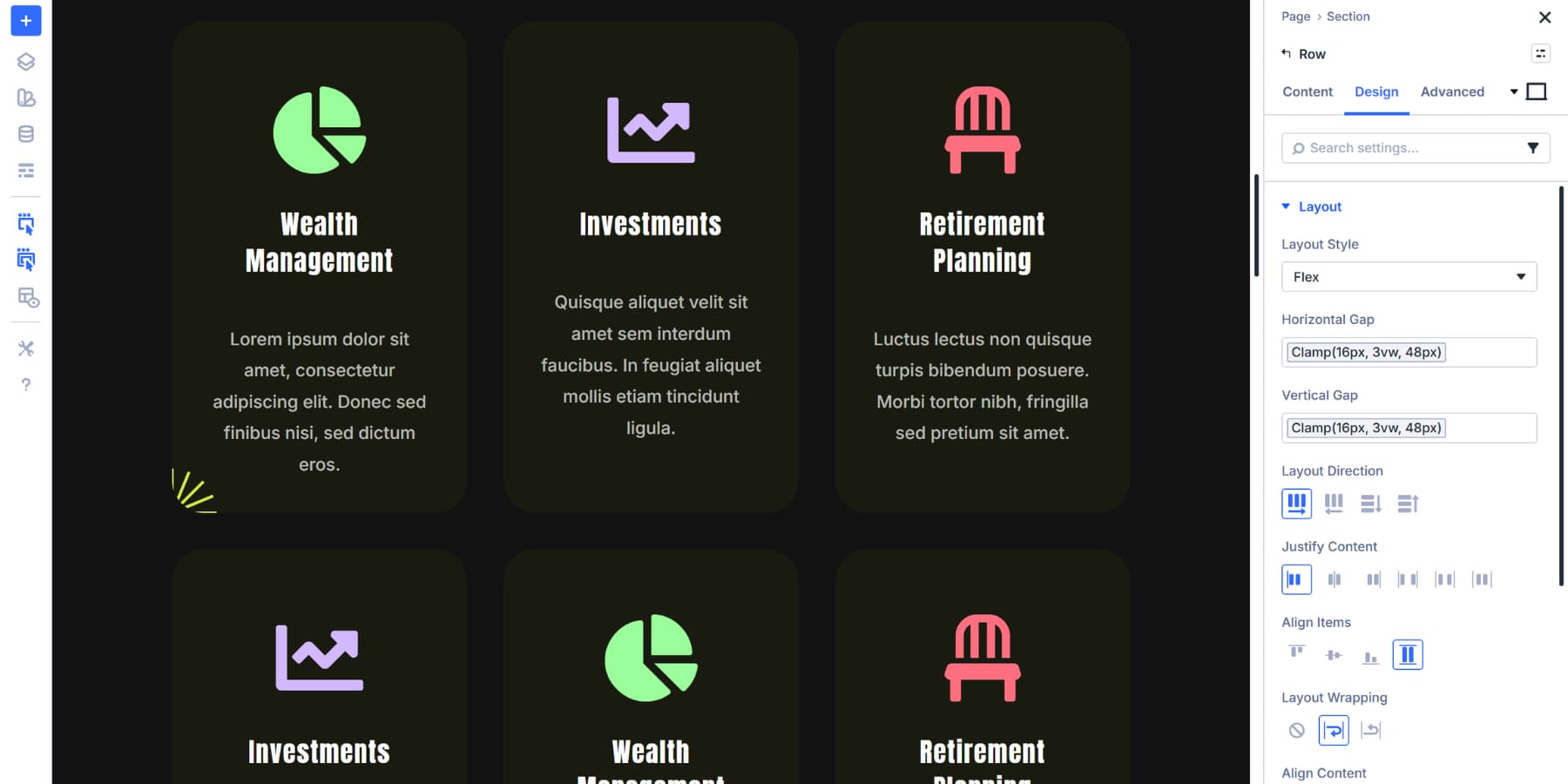

Horizontal hole areas parts facet through facet. Vertical hole areas stacked parts. Click on the Insert Dynamic Content material icon and choose your spacing variable. Area medium works for many column spacing.

Area massive creates extra respiring room for text-heavy layouts. Sections with a couple of rows get pleasure from house massive or XL on vertical hole. This separates main content material spaces cleanly. Rows containing columns most often use house medium to huge on horizontal hole, relying on content material density.

Practice Hole Spacing To Grid Layouts

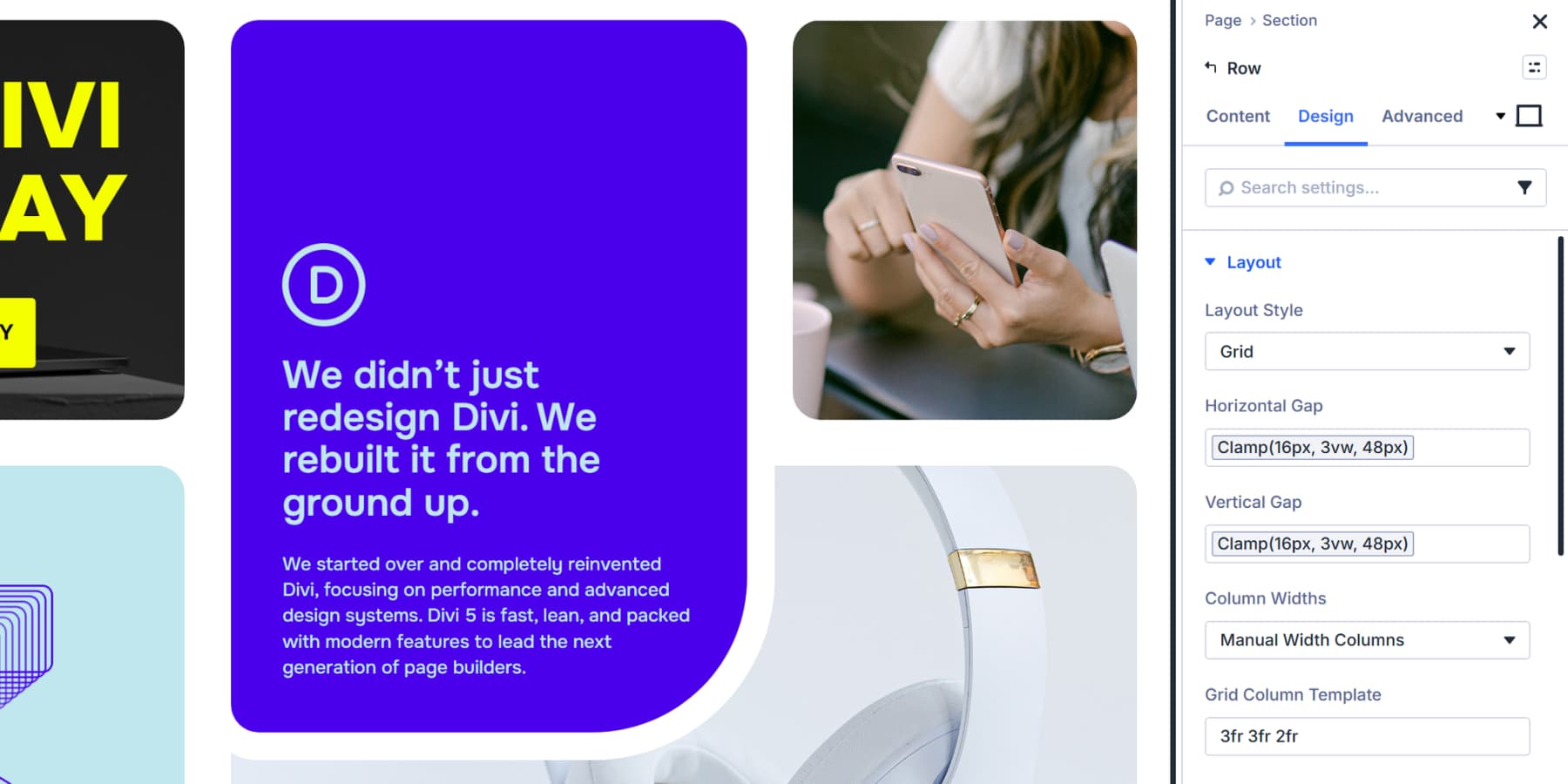

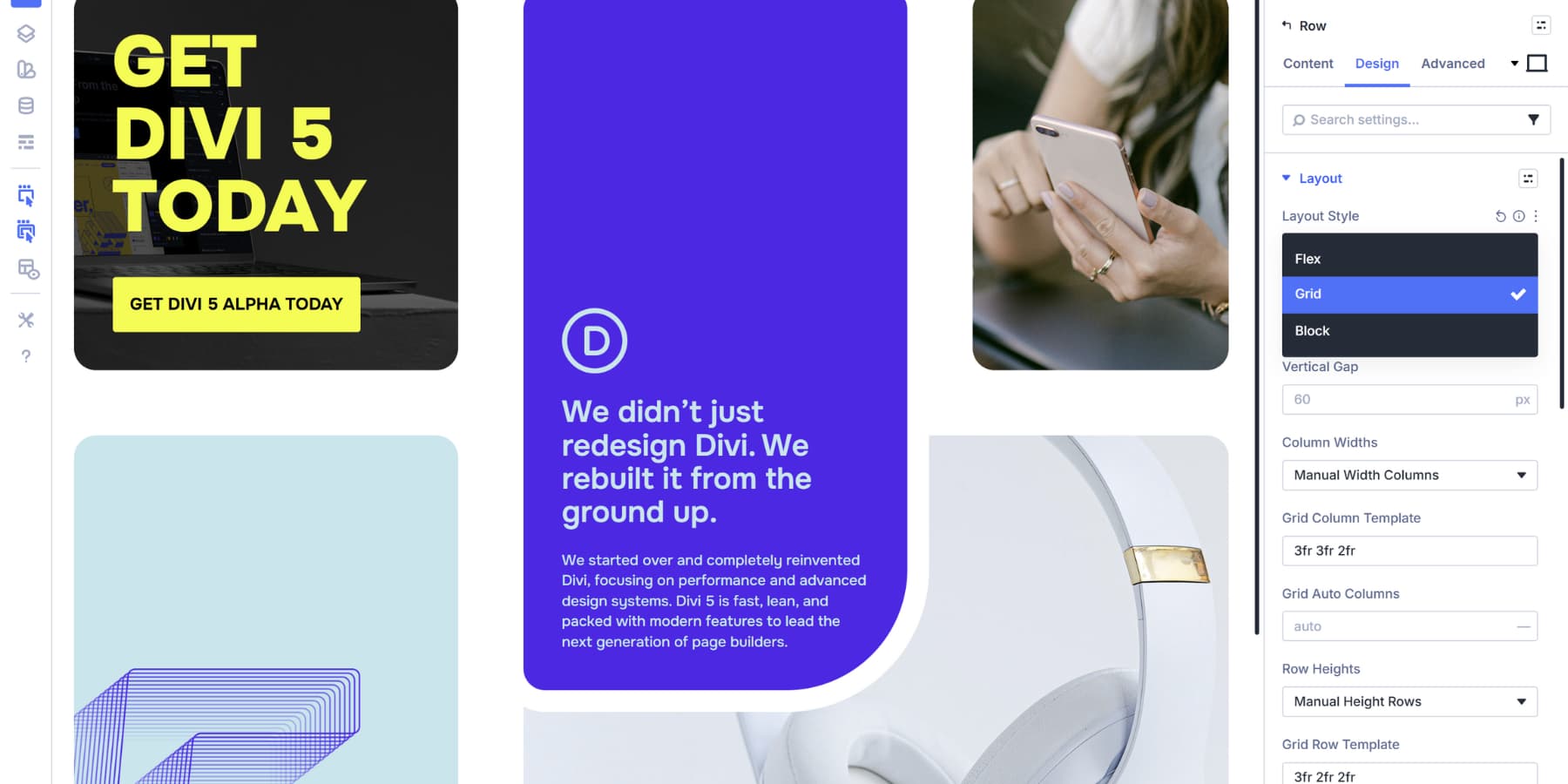

Grid layouts take care of spacing another way as a result of they regulate rows and columns concurrently. Set Format Taste to Grid to get right of entry to hole controls.

Horizontal hole creates constant vertical strains of house between all columns. Portfolio grids would possibly use house small for tight, gallery taste layouts. Function grids with playing cards ceaselessly want house medium or massive for clarity.

Vertical hole creates horizontal bands between rows. Weblog grids most often paintings with house medium. Product grids would possibly use house small to suit extra pieces above the fold.

Grid hole spacing removes the want to calculate margins or take care of edge circumstances. Set gaps as soon as the use of your variables, and each grid merchandise will get constant spacing mechanically.

Practice Spacing To Modules

Modules in Divi 5 can serve as as packing containers thru Nested Modules. A blurb can hang a heading, textual content, and button inside of it. A tab can comprise whole rows. Any module can grow to be a flex or grid container.

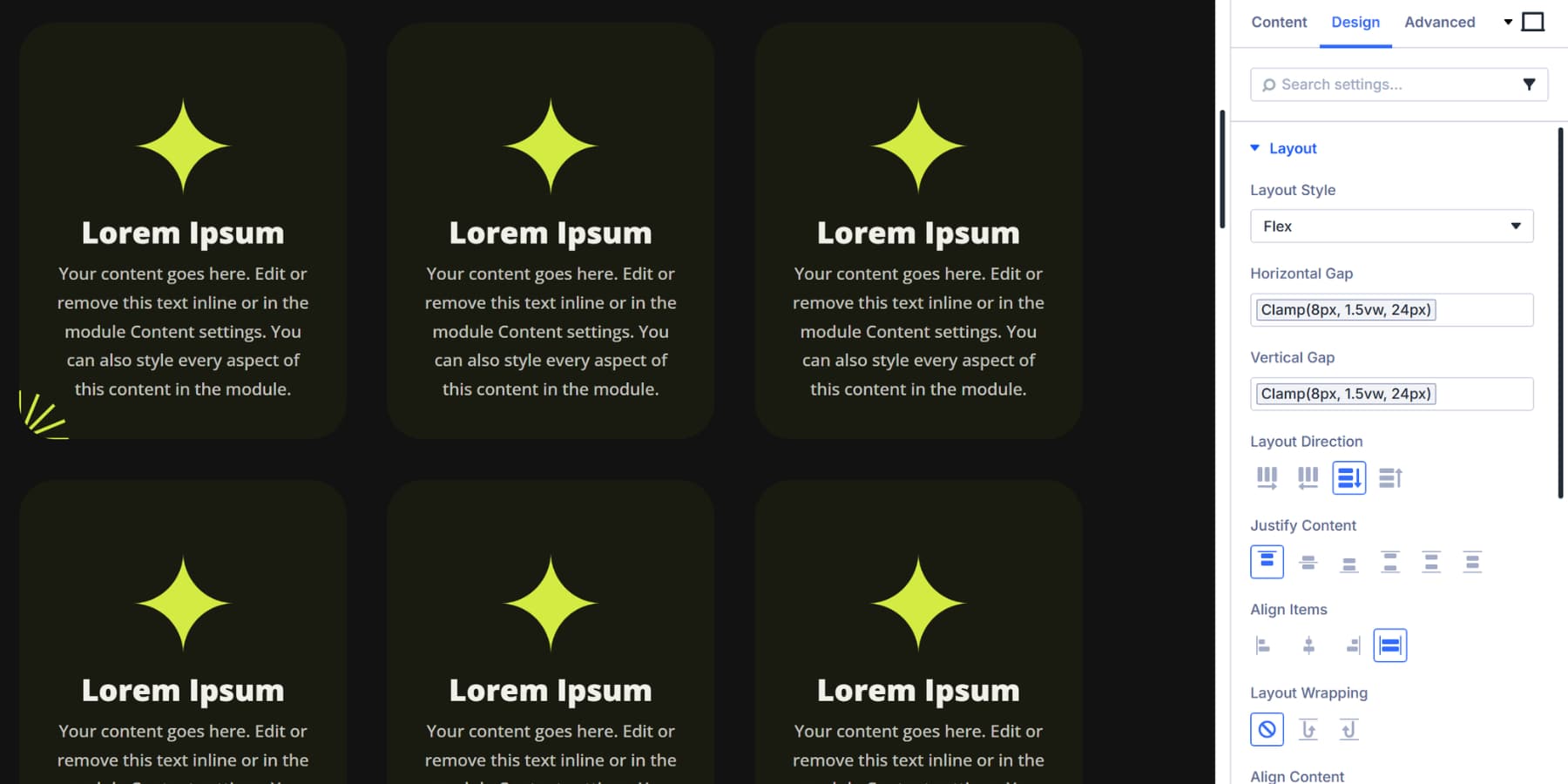

Open a module’s settings, navigate to the Design tab, and set Format Taste to Flex or Grid. This permits hole controls inside of that module. Blurbs set to Flex with a vertical hole of house small helps to keep its icon, heading, and textual content correctly spaced.

An accordion set to Grid with horizontal hole of house medium presentations function playing cards facet through facet.

Those nested hole controls paintings identically to phase and row gaps. Click on the Insert Dynamic Content material icon and choose your spacing variable. Use house XS for tight relationships. Maximum nested content material works smartly with house small to medium. Dramatic separation wishes house massive.

Modules on occasion want conventional margin and padding for outer spacing. Textual content modules use house small on backside margin when stacked. Buttons want house XS for inside padding.

Then again, when modules are positioned inside of flex or grid packing containers, let the distance spacing take care of separation as a substitute of including particular person margins.

Preview And Superb-Song If Wanted

As soon as your spacing variables are implemented, use the responsive preview to test how they scale throughout display screen sizes. With Divi 5, you’ll permit seven breakpoints or even customise them as in line with your personal tastes.

Click on at the software icons to your editor and toolbar to cycle thru and see how your spacing scales easily with none enter at each and every breakpoint.

You’ll be able to even drag the canvas edge to peer the way it scales easily between each breakpoint.

Watch how house small transitions from 8px on cellular to 24px on desktop. Take a look at that house medium maintains transparent visible separation from house small in any respect widths. Search for spots the place spacing feels cramped or over the top.

If changes are wanted, open the Variable Supervisor and regulate the clamp system within the variable itself. Converting clamp(16px, 3vw, 48px) to clamp(16px, 2.5vw, 48px) slows the expansion charge throughout each example the place that variable seems. One edit updates all your website online.

Lock It In With Presets

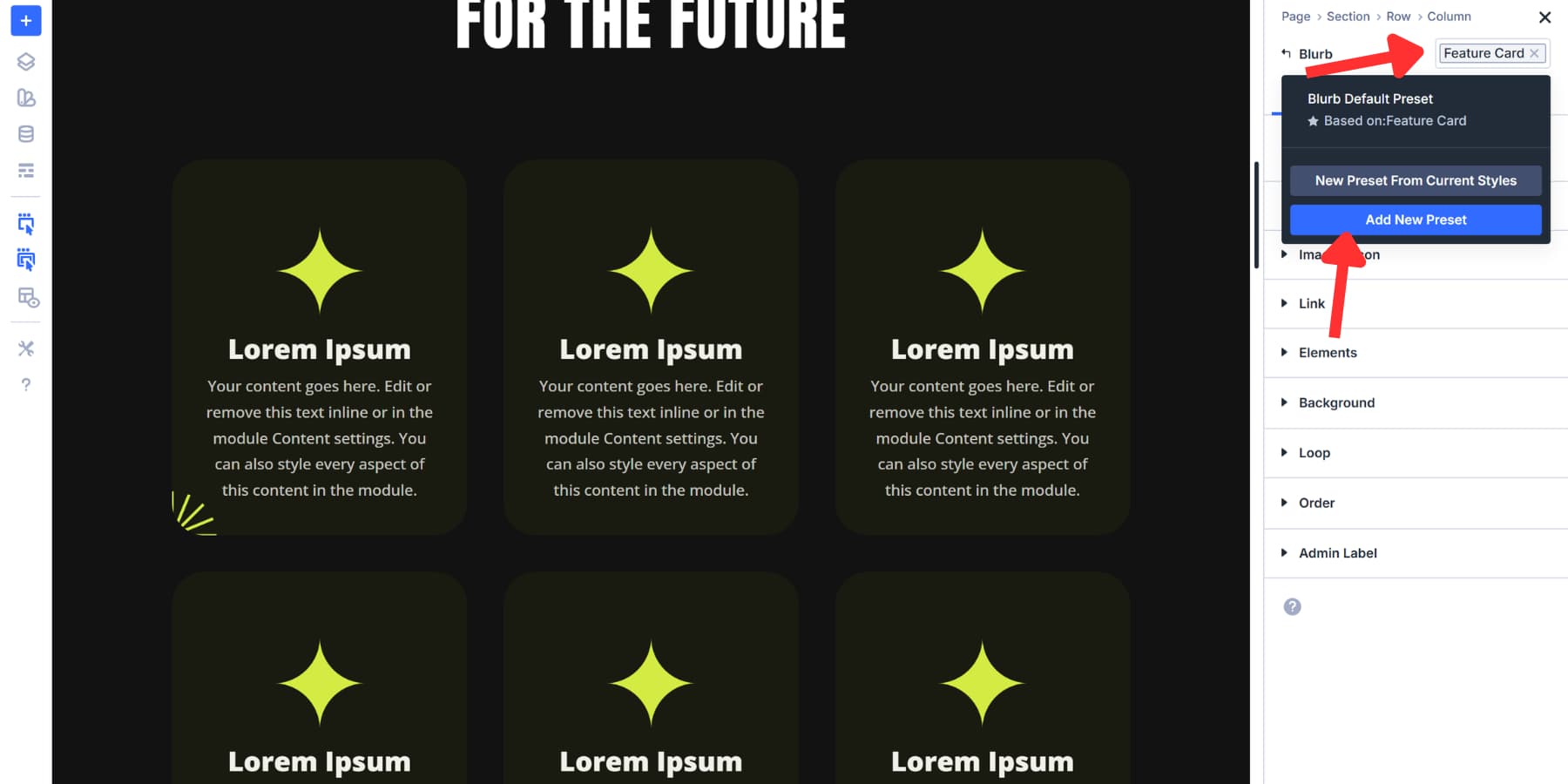

Your spacing variables are set. Element Presets bundle them into reusable modules and sections that you’ll deploy any place. Taste a blurb module and click on the preset icon within the most sensible proper nook of the module settings panel. Make a choice New Preset From Present Types.

Title it Function Card and save.

Open the preset dropdown on any new blurb. Make a choice Function Card. The spacing applies right away. The variables are already hooked up to the preset.

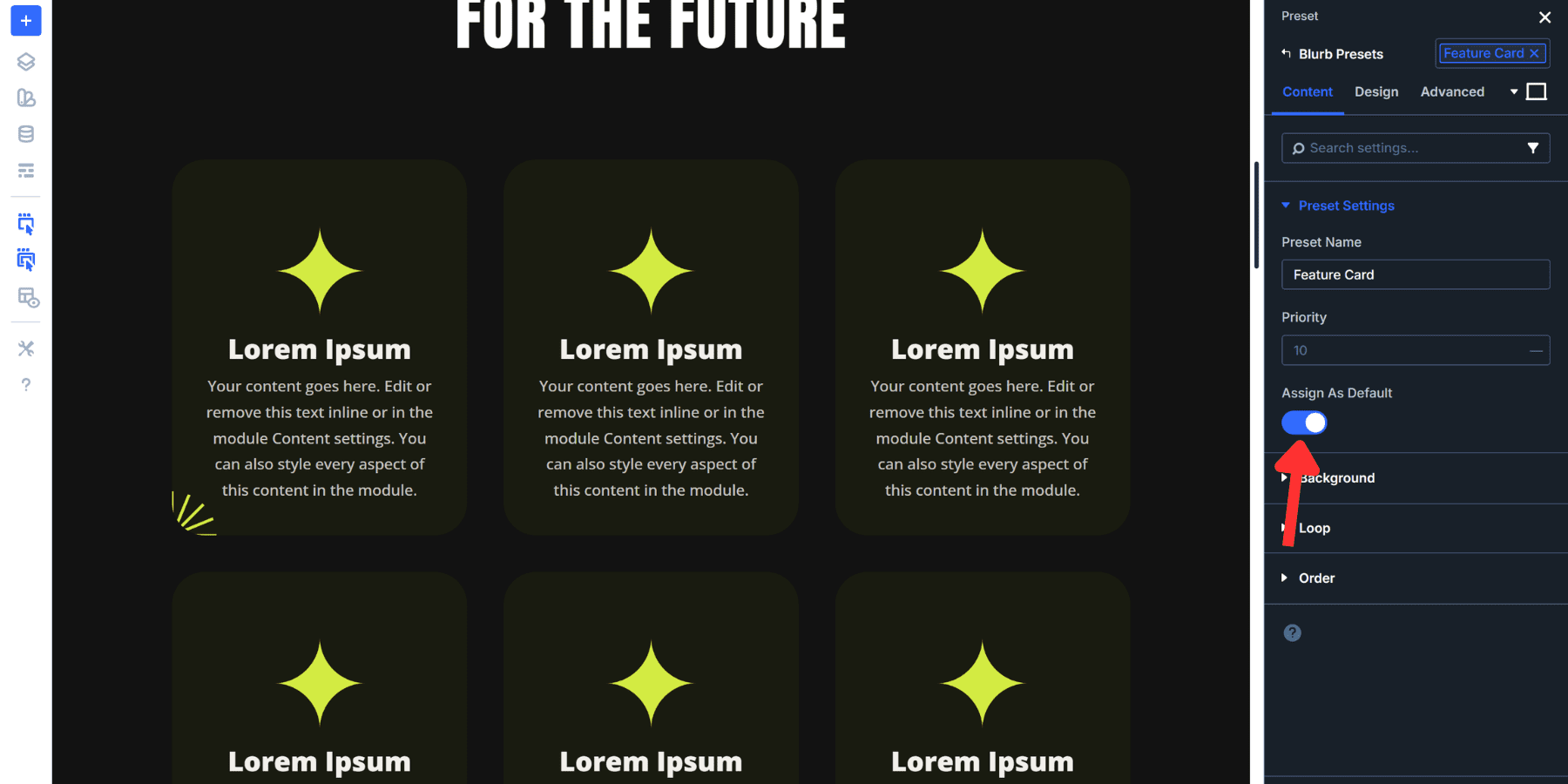

To make Function Card your default blurb taste, open the preset dropdown and hover over the settings icon of the Function Card and permit Assign As Default. Save your adjustments. Each and every new blurb you upload mechanically adopts this spacing with out further clicks.

You’ll be able to additionally stack presets. Practice your Function Card Part Preset to a module, then upload a Darkish Background Possibility Crew Preset on most sensible of it. Each presets paintings in combination at the similar component. One handles spacing, the opposite handles background colours.

Check out Fluid Spacing In Divi 5 Nowadays!

Divi 5 places fluid spacing proper within the Visible Builder. Click on a box, choose clamp(), input your values, and watch your spacing adapt in actual time. You’re now not writing code. You’re designing with gear that perceive fashionable CSS.

Websites glance just right at each display screen dimension when spacing scales accurately. That’s what the program will give you. Construct it as soon as within the Variable Supervisor, practice it thru your structure, after which continue with the real design paintings.

Use Divi 5 and notice how a lot quicker responsive design turns into when your spacing is optimized.
