Some design effects look further complex than they’re. Text protective is one among them. It sort of feels like something you might have considered trying Photoshop, custom designed CSS, or a developer to create, alternatively the elemental have an effect on may also be built immediately in Divi 5 the use of native background, color, and blend mode settings.
Subscribe To Our Youtube Channel
The end result’s simple in concept: a heading appears to be filled with a gradient, image, GIF, or video as a substitute of a flat text color. In this submit, we’ll assemble that have an effect on step by step and cover the design choices that make masked text look intentional reasonably than overdone.
What Is Text Covering?
Text protective is a visual have an effect on where the letterforms of your text act as a window into regardless of sits behind them. Instead of revealing a flat color, the characters disclose an image, gradient, looping video, or GIF. The entire thing outdoor the letters stays hidden or coated. Absolute best what falls throughout the text shape comes by way of.
The have an effect on works best when the text is very large enough to show the fill clearly. A single heading can raise a landscape image, a bold gradient, or delicate movement, all contained throughout the letters. That makes it specifically useful in hero sections, title enjoying playing cards, portfolio headers, and other places where one visual element should create hobby briefly.

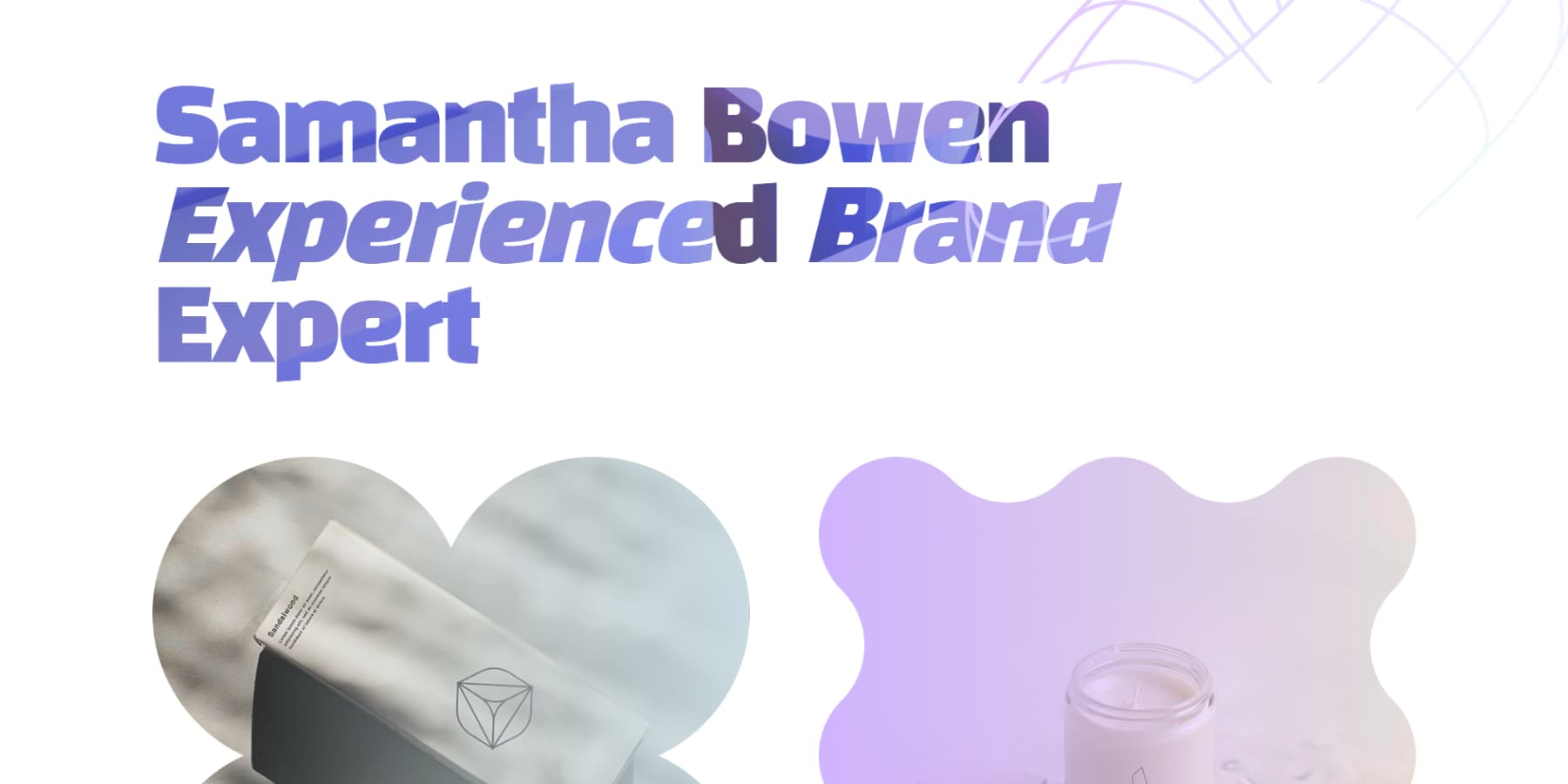

You’re going to steadily see this have an effect on on inventive portfolios, corporate web sites, style producers, song pages, and pictures web websites. It will most certainly moreover art work in more restrained designs when used quite. A SaaS landing internet web page, for example, would possibly use a relaxed gradient fill inside of of 1 headline to improve a style color tool without together with another huge graphic.
There’s a smart side to the have an effect on too. Text protective combines typography and imagery into one element. Used neatly, it would in reality add depth without together with further decorative layers to the structure.
Putting Together Masked Text In Divi 5
Text protective in Divi 5 is more uncomplicated than it seems that to be like. The name of the game’s to position a background on the column, then use black text, a white module background, and the Show combine mode to turn the column background all through the letterforms.
Atmosphere Up The Construction
Get began by way of together with a Segment throughout the Divi 5 Visual Builder. Inside of it, add a Row with a single column, then place a Text or Heading module within that column. Type your content material subject matter immediately into the module.
For layouts that already have other content material subject matter within the identical section, keep the masked text isolated so the have an effect on stays contained. Divi 5’s Nested Rows make this easy. Click on at the black + icon within your present column. When the dialog opens, click on at the New Row tab, make a selection a single-column structure, and place your Text or Heading module within that nested row.
The protective have an effect on stays scoped to that nested column and does now not impact the rest of the structure. Divi 5 is helping deeper nesting if your design needs it, alternatively one nested row is enough for this have an effect on.
Together with The Mask Background To The Column
Open the Column settings and move to Content material subject matter > Background. Add a gradient for the reason that background fill and set the path to 90 ranges. Two colors are enough to get started.
We’re the use of a gradient proper right here because of it’s lightweight and easy to control. A 90-degree linear gradient runs left to correct, which works neatly for vast headings. If your text stacks vertically or sits in a slim column, a 180-degree direction can be told upper. You’ll have the ability to moreover check out diagonal angles like 135 ranges if you want to have the fill to in reality really feel further dynamic.
You’ll have the ability to moreover alternate the gradient kind to spherical, elliptical, or conical if that upper fits the design.
For the color stops, use enough difference for the fill to stick visible throughout the letters. Two sparsely identical tones can look muddy once they’re confined to the text shape. A deep blue proper right into a vivid orange, or a gloomy purple into with reference to white, generally provides the have an effect on further definition.
The column background can be an image, GIF, or video. {A photograph} supplies texture and surroundings. A GIF supplies movement. A video creates necessarily probably the most dramatic style of the have an effect on.
The tradeoff is potency. Video and GIF backgrounds can add noticeable weight to a internet web page, specifically on slower connections. Keep information fast, compressed, and associated with the design. A cultured gradient is steadily the best option when you want the have an effect on without together with heavy media.

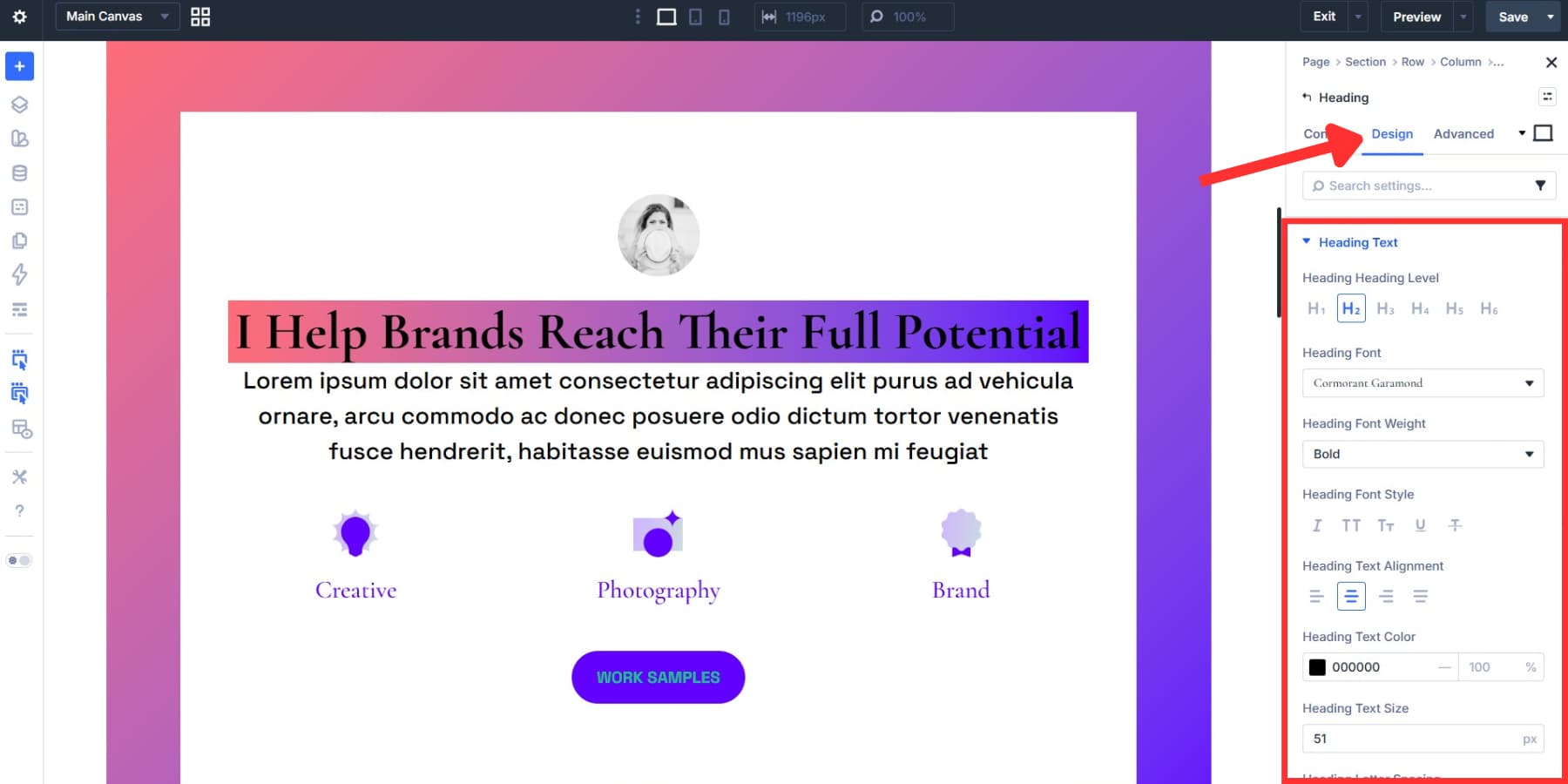

Configuring The Text Module
Open the Text or Heading module and add your content material subject matter in case you don’t have any longer already accomplished so.
Then move to the Design tab. To seek out the Text Color environment and set it to solid black: #000000. This problems given that combine mode will use the black text to turn the column background underneath. Choose your font and control the dimensions.
Bold fonts generally tend to art work best. Thin fonts can art work, alternatively they provide the fill a lot much less room to show by way of. If the have an effect on feels prone, build up the font size, weight, or letter spacing previous to changing the background.
As quickly because the typography is ready, move to the Content material subject matter tab of the identical module and prolong the Background section. Add a solid white background: #FFFFFF.
The white background is what covers the column fill outdoor the letters. Without it, the gradient or media background would keep visible all through all of the column as a substitute of revealing most straightforward throughout the text.
Applying The Show Combine Mode
However throughout the Text or Heading module, move to the Design tab and prolong the Filters section. Seek for the Combine environment and select Show from the dropdown.
That’s the position the have an effect on is available in aggregate. With the Show combine mode, the white module background stays visible and covers the column background. The black text we could within the column background to show by way of throughout the letterforms.
The end result’s a masked text have an effect on: the gradient, image, GIF, or video turns out throughout the letters, while the encircling space stays clean. Your section background nevertheless affects the total composition, so be sure it in reality works with the white module background and the colors throughout the text.
How To Use Masked Text Effectively
Getting the method to art work is most straightforward the first step. The design nevertheless is determined by the choices you’re making spherical kind, size, background, and difference.
- Choose a font with enough weight.
- Bold and heavy typefaces give the fill more room to show by way of.
- Thin or overly decorative fonts may just make the have an effect on onerous to be told.
- The letterforms need enough flooring space to carry the background.
- Use the have an effect on at a large size.
- A small masked heading will rarely have the identical have an effect on as a large one.
- Transient words, acronyms, and compact phrases steadily art work best.
- The larger the text, the easier it’s to seem the fill clearly.
- Keep in mind of the encircling background.
- The sector outdoor the module background nevertheless affects how the composition feels.
- Dark section backgrounds may just make colourful fills in reality really feel sharper.
- Gentle backgrounds create a softer, cleaner end result.
- Pick a fill with clear difference or movement.
- High-contrast gradients be told upper than delicate ones.
- Photos must have enough tonal variation to stay visible throughout the letters.
- Video and GIF fills must switch slowly enough to stay readable.
Get began Building In Divi 5 In recent times!
Text protective is a straightforward have an effect on, alternatively it would in reality briefly alternate the feel of a heading. You’re combining a column background, black text, a white module background, and Show combine mode to make the fill appear throughout the letters.
Once you understand the setup, you’ll reuse the identical manner with different fills. Trade the gradient for {a photograph} and the tone changes. Use a video and the section feels further animated. Keep a simple gradient and the have an effect on stays lightweight and brand-focused.
If you are building hero sections, portfolio headers, free up pages, or any design where a headline needs just a little of additional visual weight, masked text is worth protecting to your Divi 5 toolkit.
