Hover effects make a internet web page actually really feel additional intentional. A card shifts, an image reveals additional detail, or a button stretches quite, and the construction starts to actually really feel designed as a substitute of simply assembled.
In Divi 5, you’ll create lots of the ones interactions with the equivalent Facet Ratio and Symbol Framing controls you already use to crop and position pictures. Add hover states and transitions, and those construction controls change into motion apparatus.
In this submit, we’ll assemble 5 hover leads to Divi 5, from a elegant image pan to a button morph and a team-card spotlight affect. Along the best way during which, you’ll see how Side Ratio, Object Fit, Object Position, Filters, Change into, and Image Presets artwork together.
The Controls At the back of The ones Effects
Previous to we assemble the results, it’s serving to to seize the three number one controls doing the artwork.
1. Side Ratio
Side Ratio is situated in Design > Sizing. It devices a proportional relationship between an element’s width and height. A 1:1 ratio creates a sq.. A 16:9 ratio creates a widescreen frame. A 4:5 ratio creates a taller portrait frame.
The crucial segment is that the ratio stays proportional since the element scales. When the daddy or mom container gets wider or narrower, the element’s height adjusts to stick the equivalent shape.
That makes Side Ratio useful for more than neat image crops. It should perhaps define the resting type of an image, card, Group, or button, and that shape can also alternate on hover.
2. Image Framing
As quickly because the frame is able, Image Framing controls how the image behaves inside it. Framing is situated inside the Image chance workforce, each immediately underneath Design > Framing for the Image module or underneath Design > Image > Framing when the image is a sub-element inside modules like Particular person or Blurb.
Object Fit controls how the image fills the frame. For lots of effects in this submit, we’ll use Quilt, which scales the image proportionally until it fills the frame and crops anything that doesn’t fit. Object Position controls which part of the image stays visible inside that cropped frame.
Call to mind the frame as a window and the image as a poster in the back of it. Object Fit: Quilt assists in keeping the window whole. Object Position decides which part of the poster you see by way of that window.
That’s what makes hover movement imaginable. Trade Object Position between the default and hover states, and the visible part of the image shifts.
3. Hover State And Transitions
Hover state means that you can create a second fashion of a setting, the fashion visitors see when their cursor lands on the element.
Set one Object Position inside the default state and some other inside the hover state, and Divi animates between them. The equivalent idea applies to Side Ratio, Filters, Change into, and other design settings.
The speed and actually really feel of that animation are controlled in Advanced > Transitions. Duration controls how long the transition takes. Timing Function controls how the motion accelerates and slows down.
A slow image waft can actually really feel polished at 800ms. A button hover most often should actually really feel quicker, closer to 300ms. With those pieces in place, we will be able to get began construction.
5 Hover Effects To Assemble In Divi 5
The consequences beneath switch from simple to additional layered. Get began with the main one if you want to understand the basics, or jump to the affect that fits your provide construction.
1. The Focal Float
The Focal Float is the most straightforward affect inside the submit. On hover, the image pans all through its frame and reveals detail that was once as soon as merely out of view.
Get began with an Image module and choose a landscape image with visual interest on both sides. A cityscape, workspace, interior, product scene, or large move from side to side image works successfully.
Go to Design > Sizing and set Side Ratio to 16:9. This creates a big frame. Then transfer to Design > Framing and set Object Fit to Quilt. The image now fills the frame without stretching.
Nevertheless inside the Framing workforce, set Object Position to:
- X: 0%
- Y: 50%
This pins the visible crop in opposition to the left side of the image.
Switch to the Hover state and change the X price to 80%. Go away the Y price at 50%. That one alternate creates the motion. On hover, the image view moves from left to correct inside the equivalent frame.
Switch once more to the default state, transfer to Advanced > Transitions, and set:
- Duration: 800ms
- Timing Function: Ease-In-Out
This affect works best possible when it kind of feels like a slow expose, so avoid making the transition too speedy. Right here’s the finished affect.
To make the pan additional delicate, put across the X values closer together. To make it additional dramatic, switch them further apart. If the affect somewhat shows, choose a much broader image or {a photograph} with additional difference between the left and correct aspects.
2. The Subject Reveal
The Subject Reveal changes two problems on hover: the frame shape and the image position. At recreational, the card shows a big strip of the image. On hover, the frame becomes taller and the image shifts in opposition to the subject.
Choose {a photograph} with a clear matter and enough surrounding space to crop from. Product footage, interior details, way of living pictures, and styled scenes all artwork successfully.
Inside the default state, open the Image module and transfer to Design > Sizing. Set Side Ratio to 4:2.2. This creates a big frame that hides part of the subject beneath the visible space. Then transfer to Design > Framing and set:
- Object Fit: Quilt
- Object Position X: 50%
- Object Position Y: 0%
Now switch to the Hover state. Trade Side Ratio to 4:3. Then change Object Position to:
- Object Position X: 50%
- Object Position Y: 85%
The frame grows taller while the visible part of the image moves down in opposition to the subject.

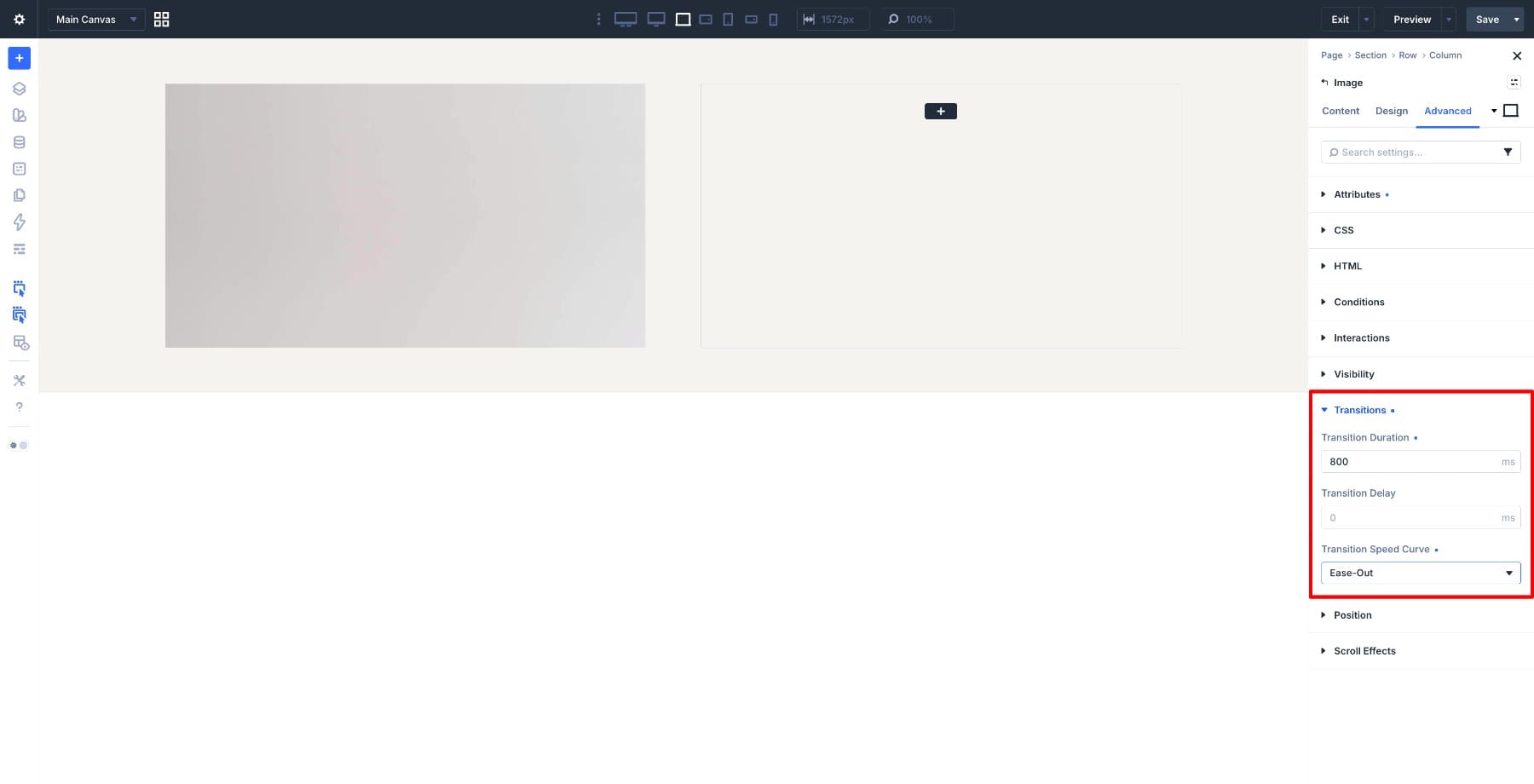

Go to Advanced > Transitions and set:
- Duration: 800ms
- Timing Function: Ease-Out
Ease-Out works successfully proper right here given that card responds briefly and then slows into place. Right here’s the result on the front end.
Given that frame grows taller on hover, it’ll perhaps push shut by means of content material subject matter downward. Give the encompassing construction sufficient room, or use this affect in a work where the expanding card has space to breathe. This works specifically successfully for product pages, portfolio enjoying playing cards, and feature grids where the photos have a an identical composition.
3. The Button Morph
The main two effects moved an image inside a frame. This one changes the frame itself. Side Ratio can also shape a Button module. By the use of giving the button a suite height and then changing its ratio on hover, the button stretches sideways while protective the equivalent height.
Add a Button module and open Design > Sizing. Set:
- Best: 50px
- Side Ratio: 3:1
With a 50px height and a 3:1 ratio, the button becomes 150px large. Switch to the Hover state and change Side Ratio to 5:1. At the an identical height, the button stretches to 250px large.
Then transfer to Advanced > Transitions and set:
- Duration: 300ms
- Timing Function: Ease-In-Out
Buttons need to actually really feel speedy, so keep this transition quicker than the image effects.
The button grows from its alignment stage, so centering the module most often seems necessarily essentially the most controlled. Since the button actually changes size on hover, go away enough clearance spherical it.
For a variation, create a circle-to-pill morph. Set the resting ratio to 1:1, use a completely rounded border radius, and keep the resting label transient or icon-only. On hover, alternate the ratio to 3:1 so the circle opens proper right into a pill.
4. The Contained Zoom
The Contained Zoom is a antique image hover affect. The image scales up, alternatively the frame stays the equivalent size.

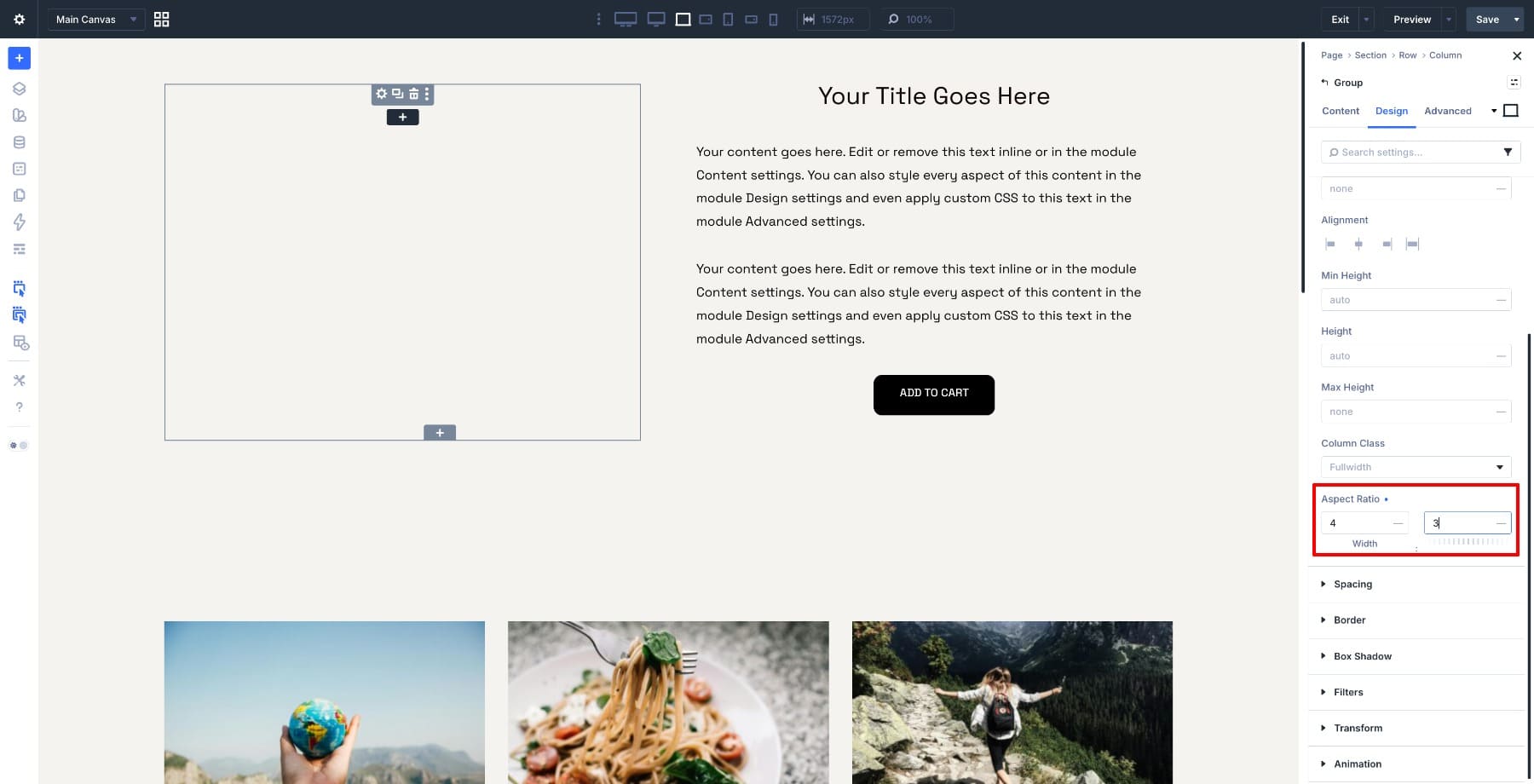

In Divi 5, the Group module makes this imaginable without custom designed CSS. The Group defines the frame and clips the overflow. The Image module inside it scales on hover. Get began with a Group module. Go to Design > Sizing and set Side Ratio to 4:3.
Go to Advanced > Visibility and set each and every overflow alternatives to Hidden:
- Horizontal Overflow: Hidden
- Vertical Overflow: Hidden
Now add an Image module all through the Group and set its width to 100%.
Set Object Fit to Quilt and remove to any extent further margin or padding on the Group and Image module. The image may have to sit down down flush all through the Group frame.
The motion comes from Change into, no longer Object Position. Open the Image module, switch to the Hover state, and transfer to Design > Change into. Set Scale to 110%.
On hover, the Image module grows. The Group module clips anything that extends earlier the frame. Set the Image module transition to:
- Duration: 800ms
- Timing Function: Ease-In-Out
Preview the affect on the front end. If the image escapes the frame on hover, check the overflow setting. Overflow Hidden belongs on the Group module, no longer only on the Image module inside it.
You’ll use the equivalent container idea for various hover interactions too. Add a caption all through the Group and switch it upward on hover. Combine the zoom with a small rotation. Or pair the size with a depressing overlay. The Group assists in keeping the motion contained.
5. The Spotlight Pan
The Spotlight Pan combines 3 changes immediately:
- The image pans in opposition to the subject.
- Saturation will building up from grayscale to finish color.
- Brightness lifts quite.

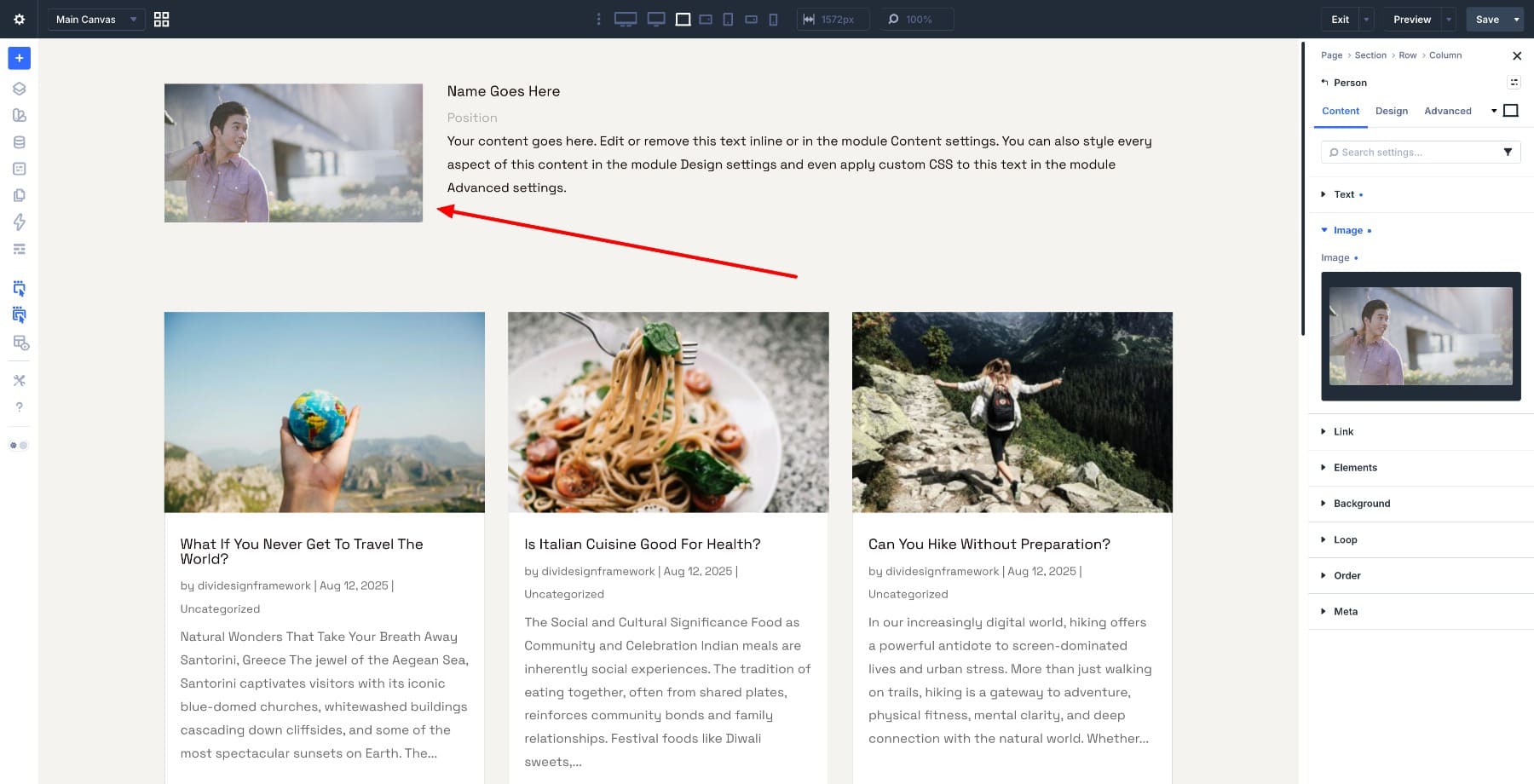

At recreational, the portrait feels quieter and quite off-center. On hover, the subject comes into point of interest visually and compositionally. We’ll assemble this on the Particular person module. Choose portraits where the subject sits somewhat off-center and has some setting spherical them. The affect needs room to pan in opposition to the person.
Open the Particular person module and transfer to Design > Sizing. Set Side Ratio to 4:5. This creates a portrait frame that works successfully for workforce grids.

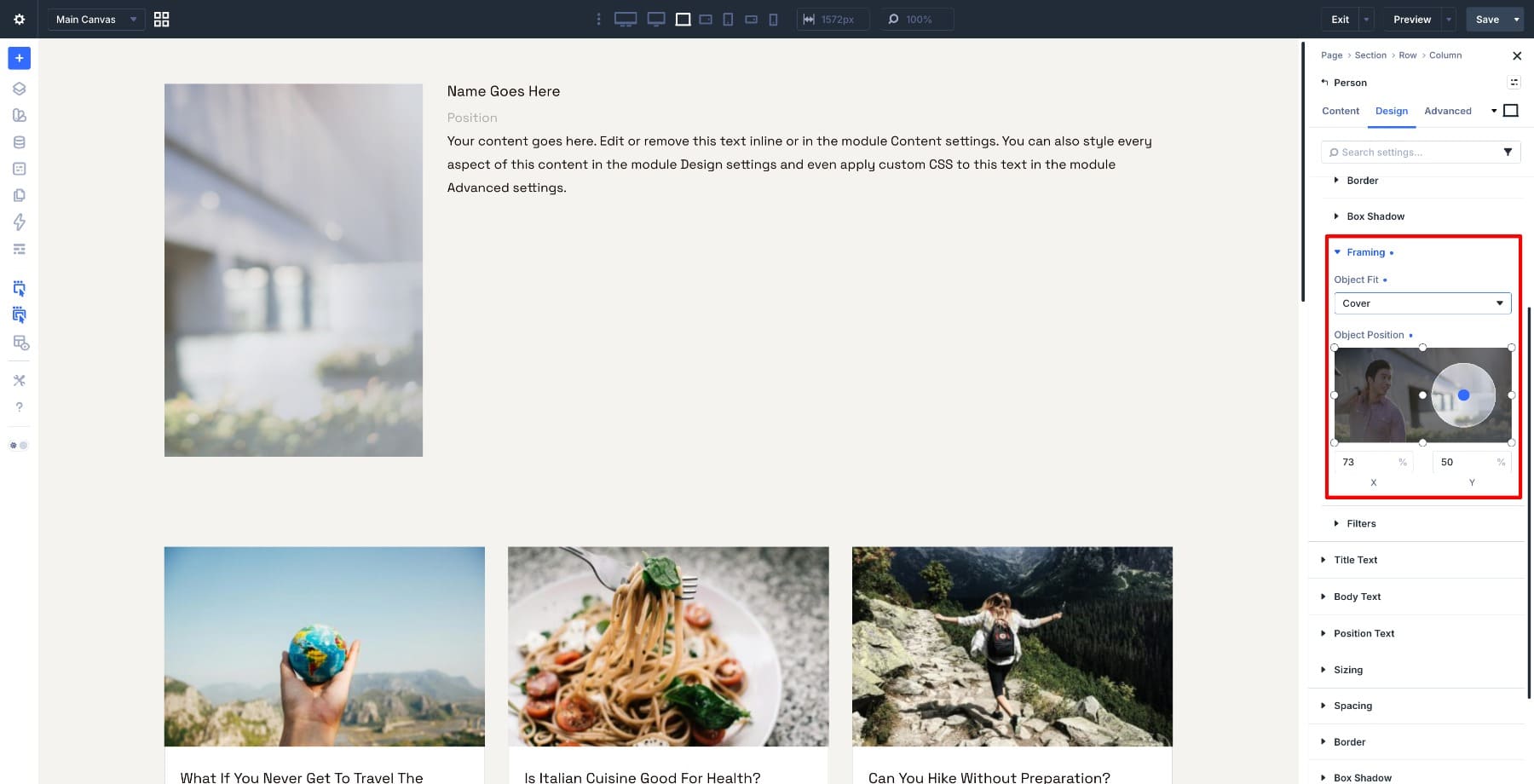

Then transfer to Design > Image > Framing. Set:
- Object Fit: Quilt
- Object Position X: 73%
- Object Position Y: 50%
This frames the image quite transparent of the subject inside the default state.

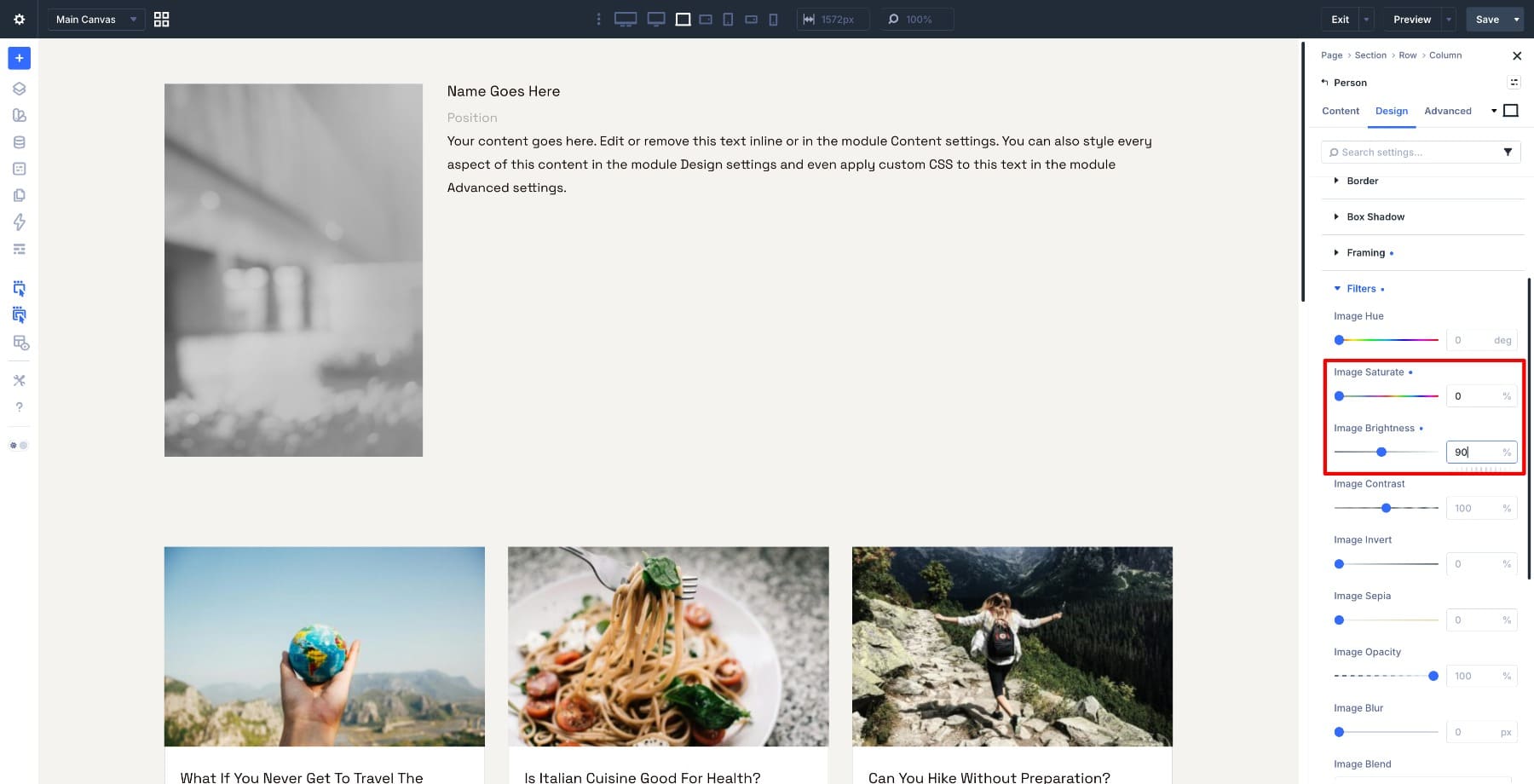

Within the equivalent Image chance workforce, open Filters. Set:
- Saturation: 0%
- Brightness: 90%
Now switch to the Hover state. Substitute the values to:
- Object Position X: 70%
- Object Position Y: 50%
- Saturation: 100%
- Brightness: 100%
The image pans quite, color returns, and the portrait brightens at the an identical time.
Go to Advanced > Transitions and set:
- Duration: 600ms
- Timing Function: Ease-In-Out
One transition controls the pan, saturation, and brightness changes, so the affect feels unified.
Right here’s all the affect on a bunch grid.
If the subject sits on the opposite side of the image, reverse the X values so the pan moves in opposition to the person as a substitute of transparent of them. When your workforce photos are composed consistently, the equivalent settings can artwork all through all the grid.
Save Your Hover Effects As Image Presets
The Spotlight Pan uses a lot of settings all through default and hover states. Rebuilding that affect on every Particular person module may well be slow. Given that affect lives all through the Image chance workforce, you’ll reserve it as an Symbol Possibility Crew Preset and apply it to other modules that use the equivalent Image chance workforce.
In conjunction with your finished Particular person module open, transfer to Design > Image. Click on at the preset chip on the most productive of the selection workforce, save a brand spanking new preset, and offers it a descriptive identify, similar to Spotlight Pan.
Open some other Particular person module, transfer to the equivalent Image chance workforce, and make a selection the saved preset. The image styling, framing, filters, and hover-state values carry over.
The one issue to watch is course. A preset can save the pan values, alternatively different photos would possibly place the subject on different aspects of the frame.
If a portrait pans transparent of the person, open that module’s Framing settings and turn the X values for that image. The preset can nevertheless care for the rest of the affect, while that one local adjustment assists in keeping the crop correct.
Want the pan slower, the grayscale softer, or the frame somewhat taller? Substitute the preset, and every module the use of it updates with the equivalent alternate. That’s the upper Divi 5 workflow: turn a design answer proper right into a reusable preset, observe it across the web page, and arrange the shared style from one place.
Create Unique Image Ends up in Divi 5 In recent years!
Side Ratio and Image Framing are most often thought to be cropping apparatus. On the other hand while you combine them with hover states, transitions, filters, transforms, and presets, they change into a flexible method to create interactive visual effects. You’ll pan all through an image, expose a subject, morph a button, zoom inside a suite frame, or put across a portrait into point of interest without writing custom designed CSS.
Get began with one affect, save the settings that repeat, and refine the values for every image when sought after. The equivalent apparatus that keep your pictures proportional and well-framed can also make your Divi 5 layouts actually really feel additional responsive and polished.
