Divi 5 already will provide you with a complete CSS Grid device for developing two-dimensional layouts throughout the Visual Builder. You’ll be capable of define columns and rows, control gaps and track sizes, use premade grid buildings, and create Grid Offset Rules for layouts where certain items need to span or switch otherwise.
The new CSS Grid Editor supplies a visual layer to that workflow. Instead of shaping an advanced grid via settings alone, you’ll be capable of open a are living grid canvas, drag tracks to resize them, reposition items, trade gaps, and pull corner handles to create row and column spans while staring at the development take shape.
In this educational, we’ll use the Grid Editor to build an asymmetric twelve-photo gallery all the way through 4 columns. Along the best way during which, we’ll moreover connect the layout to Grid Offset Rules, Amount Variables, Presets, Prolong Attributes, Aspect Ratio, and Image Framing so the finished gallery is reusable and responsive.
What The CSS Grid Editor If truth be told Does
CSS Grid is a two-dimensional layout device. You define columns and rows on a mom or father container, then the child parts drift into that building. Particular person positions can span a couple of columns or rows, which makes Grid specifically useful for galleries, editorial layouts, feature enjoying playing cards, product collections, and other designs where horizontal and vertical alignment need to artwork together.
Flexbox is designed principally spherical one axis at a time, while Grid handles rows and columns together. A layout with one huge image beside two smaller stacked photos, with the encompassing edges last aligned, is a natural use case for Grid.
Divi 5’s CSS Grid machine already exposes the underlying layout controls throughout the Visual Builder, along with columns, rows, track sizing, gaps, alignment, and Grid Offset Rules. The Grid Editor will provide you with in a different way to artwork with that exact same device by the use of translating the development into a visual canvas.
Open it and also you’ll be capable of see the grid as a collection of tracks and preview items, then shape those tracks right away. Changes made on the canvas are reflected throughout the corresponding Grid settings and Offset Rules, so the visual editor and the settings panel keep two views of the equivalent layout.
The Grid Lives In The Container, No longer The Items
Probably the most an important useful parts of Divi 5’s Grid implementation is that the layout is stored at the container level. Grid Offset Rules function positions the usage of pseudo-classes fairly than placing layout settings right away on the baby modules themselves.
That means resizing a preview products throughout the Grid Editor changes the container’s rules fairly than bettering the Image, Text, Team of workers, or other module occupying that position. You’ll be capable of exchange the content material subject material, add or remove kids, and reuse the development with the Loop Builder while protective the grid just right judgment lower unfastened the content material subject material.
Problems You Can Do Inside The Editor
Six core actions quilt quite a lot of the visual grid-building workflow.
Drag The Corner Anchors To Resize An Products. Every preview products has draggable handles on its 4 corners. Pull one outward to make that position span additional columns, rows, or every. This is how we’ll create the larger feature cells in our gallery.
Drag And Drop An Products To Reposition It. Switch a numbered preview products into a novel cell to change its position all the way through the grid. Divi knowledge that placement all the way through the container’s Grid Offset Rules.
Modify The Gaps. Horizontal and vertical gaps can also be changed numerically or dragged right away between tracks. A are living price turns out as you control them, making it easy to find spacing visually and then select a real price.
Drag Column And Row Edges. Drag a grid line to resize the tracks on every facet. This will provide you with a visual way to create uneven columns and rows as a substitute of relying best on equal-width buildings.
Add Placeholder Grid Items. The Grid Items control supplies development bins to the editor so that you’ll be capable of preview a longer layout previous than every precise module has been added. The ones are visualization aids best; they don’t create exact modules or content material subject material throughout the Row.
See Offset Rules Highlighted. Grid Offset Rules are displayed on the canvas, along with which positions they impact. That makes an provide advanced grid more uncomplicated to understand on account of you’ll be capable of connect each rule to the part of the layout it controls.
Grid Offset Rules
Grid Offset Rules tell positions inside a Grid to behave otherwise from the ground building. A rule can function a selected position, the principle or final thing, atypical or even items, repeating sessions very similar to every third products, or a custom designed nth-child development.
You place up them underneath Grid Offset Rules throughout the container’s Design tab. Depending on what the layout needs, a rule can control values very similar to Column Span, Column Get began, Column End, Row Span, Row Get began, and Row End.
Repeating objectives are specifically useful for dynamic or longer grids. As an example, a rule all in favour of every fourth products can create a repeated visual rhythm without styling each baby one at a time. We quilt those patterns in more depth in this information to Divi 5’s Grid Offset Editor.
The new Grid Editor makes the equivalent device further visual. While you switch or resize a preview products on the canvas, Divi automatically creates the corresponding rule for that focused position. You’ll be capable of then open the generated rule and fine-tune its placement values or trade its function if you want the craze to replicate.
How To Assemble A Grid Visually With Divi 5’s CSS Grid Editor
We’re developing a twelve-photo gallery with 4 columns and a mix of huge, tall, huge, and single-cell positions. The main image acts as the opening focal point, while the remainder spans create a staggered rhythm further down the gallery.
We’ll shape the development visually first, then connect repeated design values to Amount Variables and Presets. In any case, we’ll control the image crops and responsive Grid settings so the gallery helps to keep its supposed hierarchy at smaller breakpoints.
Step 1: Add A Grid Row And Open The Editor

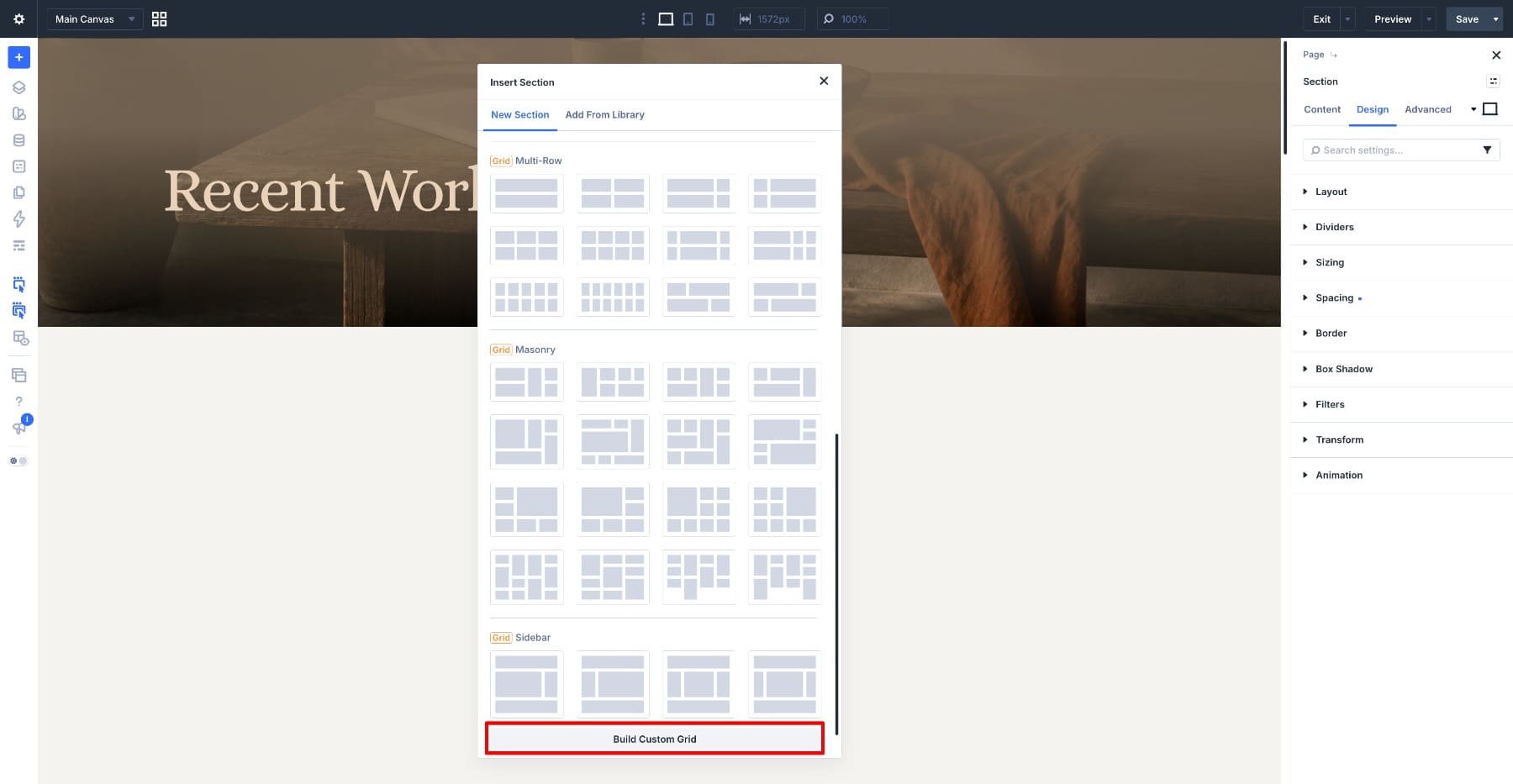

Open a blank internet web page throughout the Divi Builder and add a Section. While you insert a brand spanking new Row, you’ll see Assemble Custom designed Grid alongside Divi’s premade buildings. Make a selection it when you want to begin with the Grid Editor fairly than a predefined layout.
You’ll be capable of moreover get began with an provide building. Open the container settings, cross to Design > Structure, set Structure Style to Grid, and click on on Open Grid Editor. This trail works neatly when a premade Grid building already gets you in terms of the design you want.

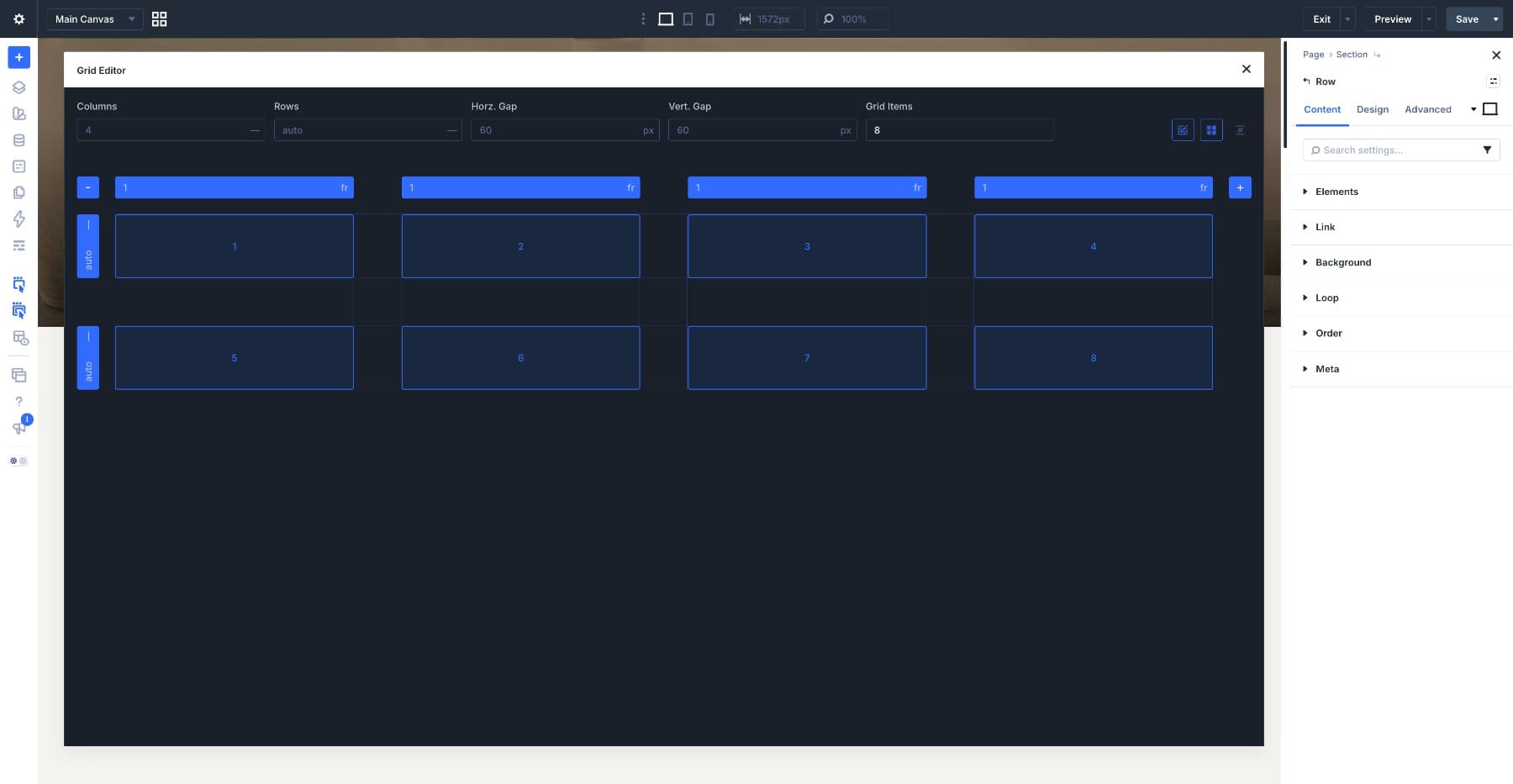

For this educational, make a choice Assemble Custom designed Grid. The Grid Editor opens as a floating instrument panel, where you’ll be capable of configure the grid and continue working throughout the builder while it stays open.
If you are working with an provide element and can’t to find the Open Grid Editor button, check out its Structure Style first. The Grid Editor becomes available once that element is the usage of Grid.
Step 2: Assemble The Grid Development
Get began by the use of surroundings Grid Items to 12. Remember the fact that the ones are preview placeholders throughout the editor, now not exact Image modules. Showing all twelve lets us see all your development while we shape the layout.

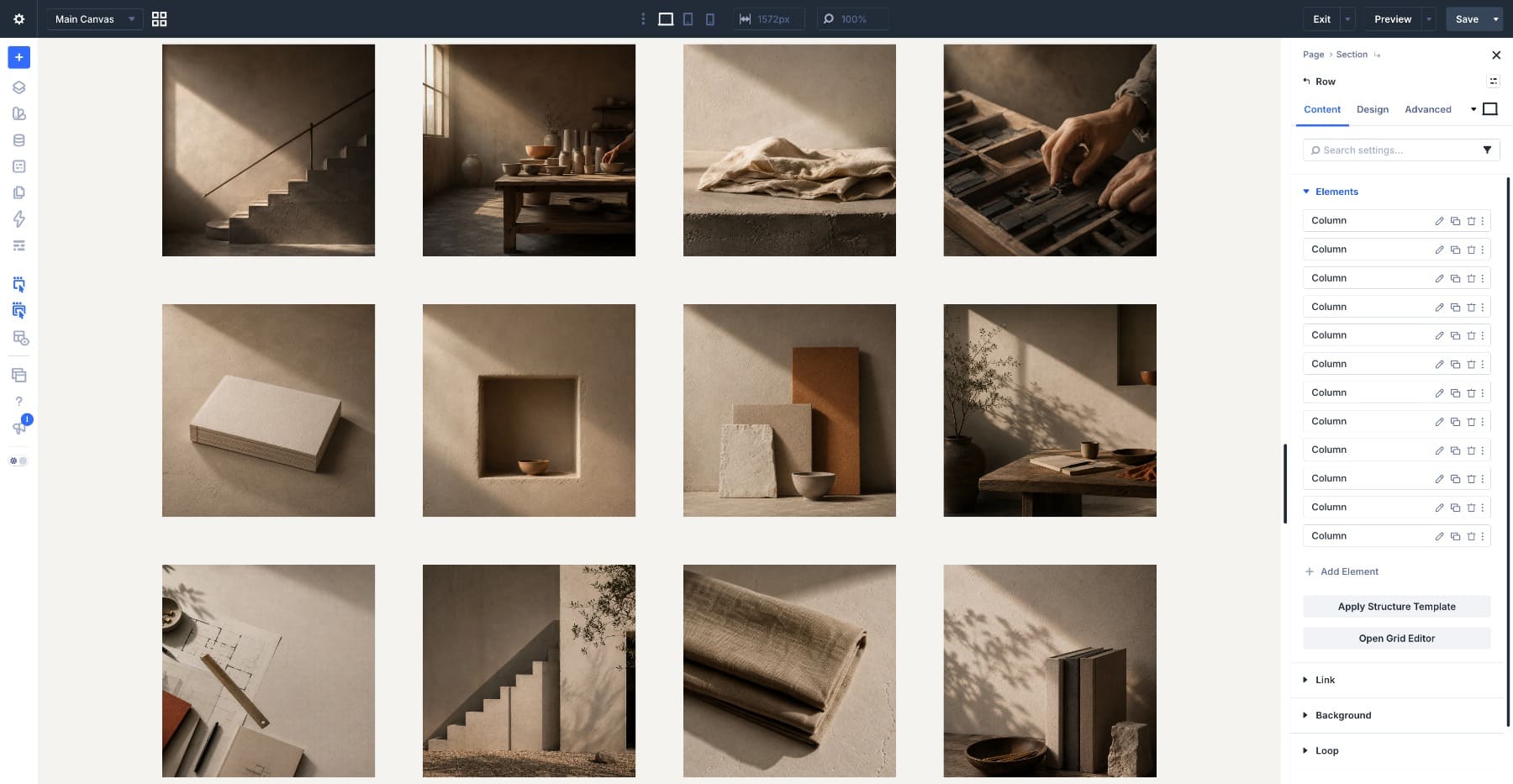

Once more in the real Row, add twelve Image modules and upload the photographs you want to use. The Grid Container controls where those baby modules land.
The 4 columns appear across the Grid Editor, with their provide track sizes visible above the canvas. Use the plus and minus controls when you need so that you could upload or remove tracks, and leave the row heights on Auto for this gallery so their final measurement can respond to the content material subject material and movie proportions.
Now shape the principle feature position. Snatch a corner handle on products 1 and drag it suitable and down until it spans two columns and two rows. Items 2 and 3 occupy the remainder positions throughout the first row, while items 4 and 5 continue the development beneath them.
Switch further down the grid and offers items 6 and 7 taller positions by the use of extending each one all the way through two rows. Then make larger products 8 across the two columns beside them, growing a larger feature block opposite the tall cells.
For the overall part of the gallery, make larger products 9 all the way through columns 1 and a couple of and down via the next row. Let products 10 span the remainder two columns above items 11 and 12, which stay as single positions.

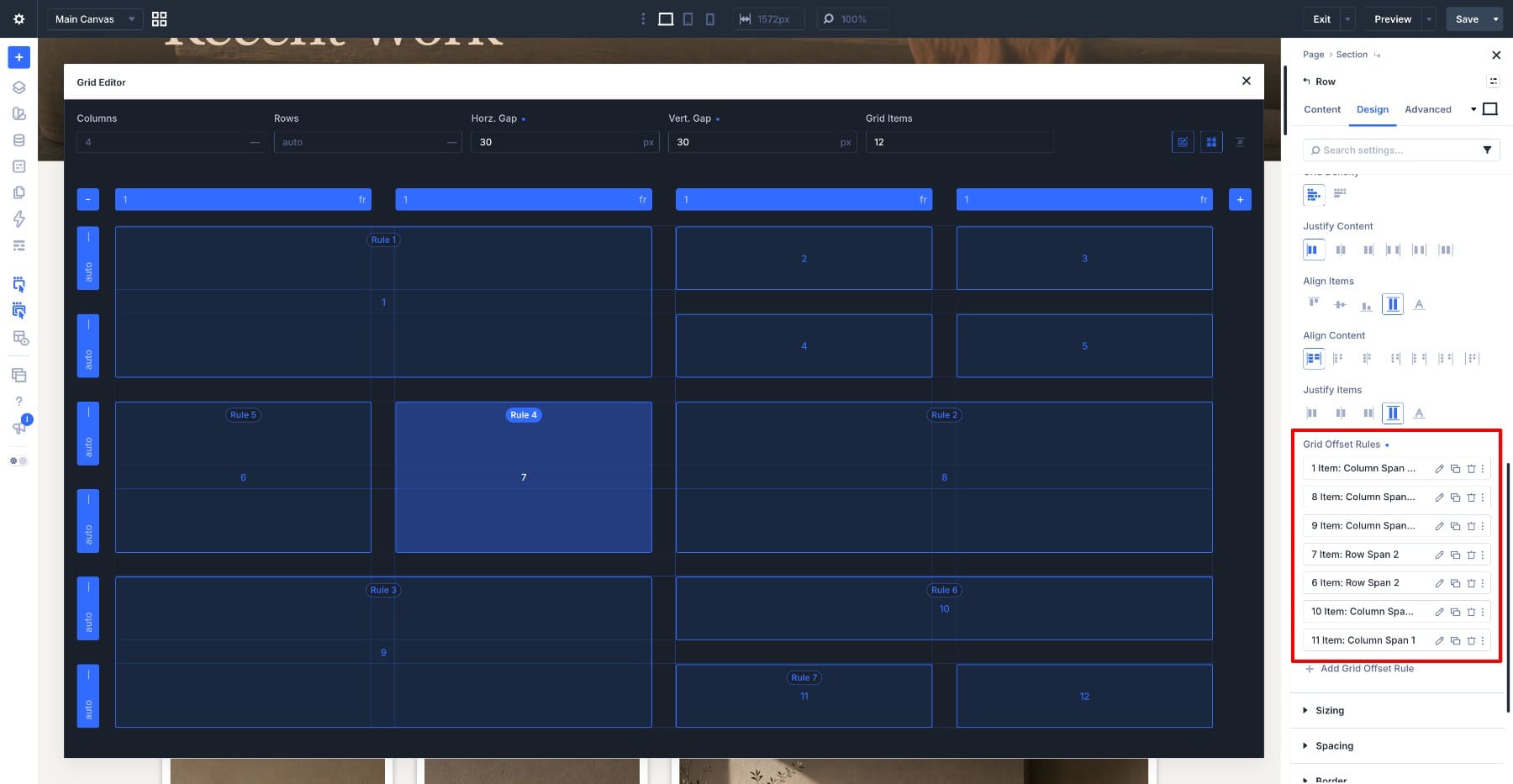

As you resize items, rule labels appear throughout the editor. Those labels connect the visual spans to the Grid Offset Rules being generated on the container.

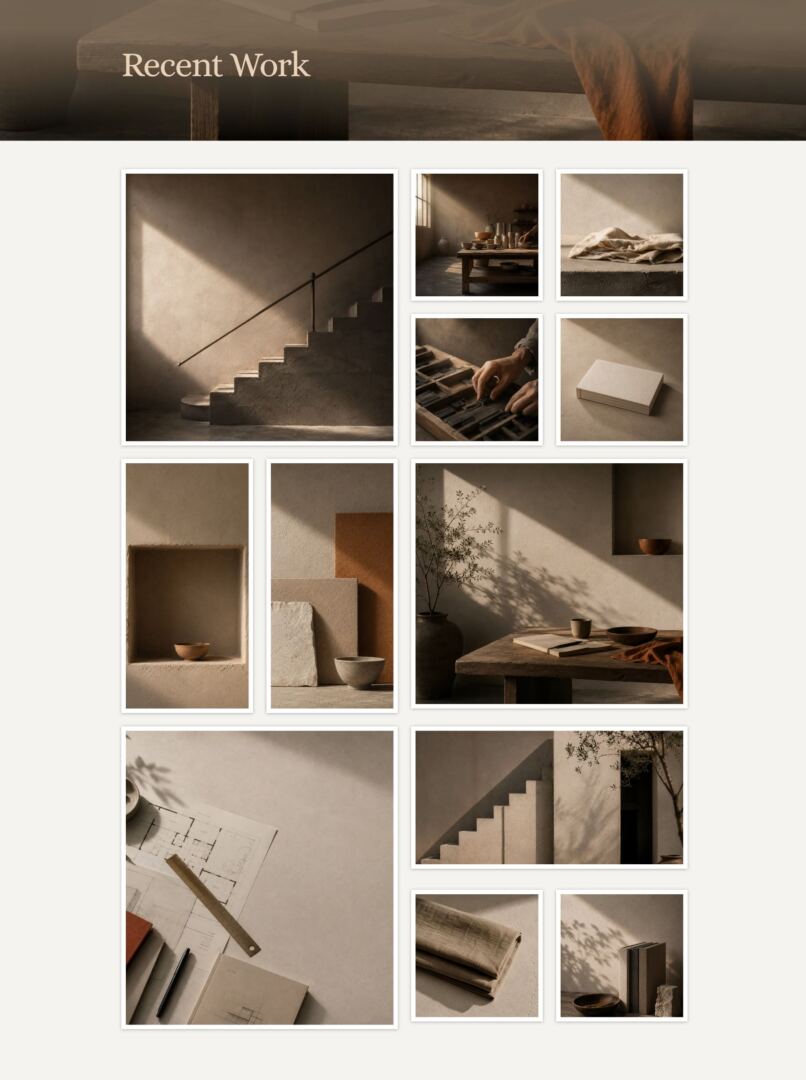

Preview the internet web page and the Image modules now occupy the development you created. The Grid rules belong to the mummy or father container, so converting an image or changing the child content material subject material does now not require rebuilding the grid itself.
Step 3: Set The Horizontal And Vertical Gaps
The cells are not too long ago sitting right away beside each other, so add some breathing room. Set Horz. Hollow and Vert. Hollow to 30px. You’ll be capable of type those values right away or drag the gaps on the Grid Editor canvas and watch the layout change.
Using the equivalent price in every directions supplies the gallery a continuing rhythm while nevertheless allowing the otherwise sized cells to create the visual passion. On account of this spacing price could also be useful in different places on the site, save 30px as a Amount Variable and reference that variable in every Hollow fields.
Step 4: Style The Photos And Save The Design
The grid building is done, so now we’ll give the photographs a shared visual treatment. Open the principle Image module, cross to the Design tab, and open Border. Set Border Width to 10px, Border Color to #FFFFFF, keep Border Radius at 0, and use a Forged border on all 4 aspects.

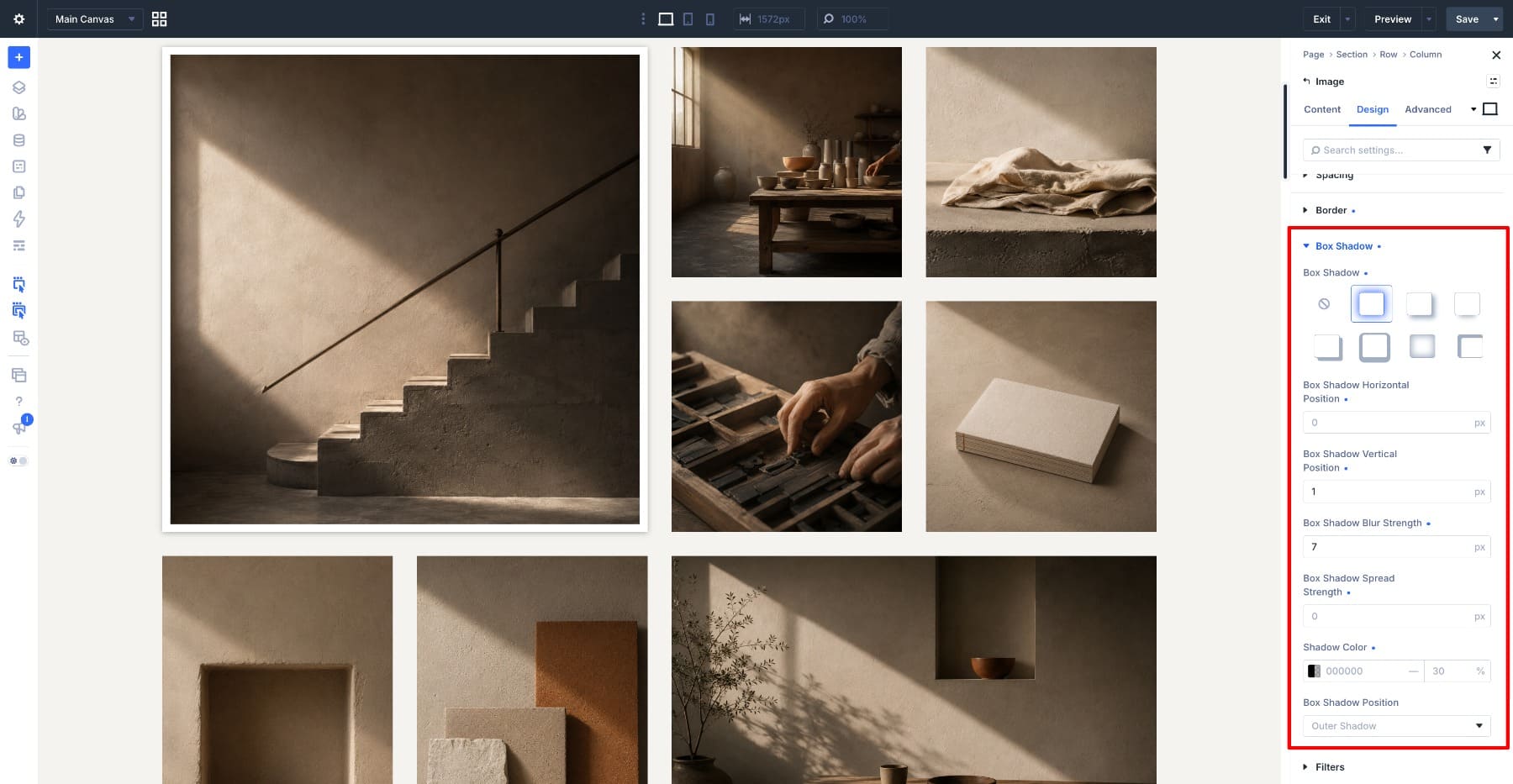

Next, open Box Shadow and make a selection the second preset. Set Box Shadow Vertical Position to 1px, Box Shadow Blur Power to 7px, leave Horizontal Position and Spread Power at 0, and set the shadow to #000000 at 30% opacity with Outer Shadow determined on.
The white frame defines each {{photograph}} against the gallery background, while the comfy shadow creates enough separation to stick the borders from blending into lighter areas.
Save the completed image styling as an Part Preset. Given that border and shadow belong to the equivalent gallery-image treatment in this example, protective them together makes the preset speedy to make use of.
In case you are anticipating to reuse the border and shadow independently in different places, save them as separate Selection Team of workers Presets as a substitute and blend those reusable picks within an Part Preset. That will provide you with further flexibility when another image or module best needs one part of the treatment.
Now right-click the styled Image module and make a choice Prolong Attributes. Prolong its Design Attributes to the other Image modules throughout the Row so that they download the equivalent preset and styling without copying the provision image content material subject material.
Lengthen Attributes means that you can make a choice which feature elegance to propagate, so selecting Design Attributes correct right here helps to keep each {{photograph}}’s unique content material subject material intact while distributing the shared design treatment.
Step 5: Are compatible The Image Ratios To The Grid
The Grid defines the layout proportions, on the other hand the provision photos nevertheless have their own intrinsic shapes. To make the larger and taller positions in reality really feel intentional, give those Image modules ratios that are compatible the supposed visual proportions of their cells.

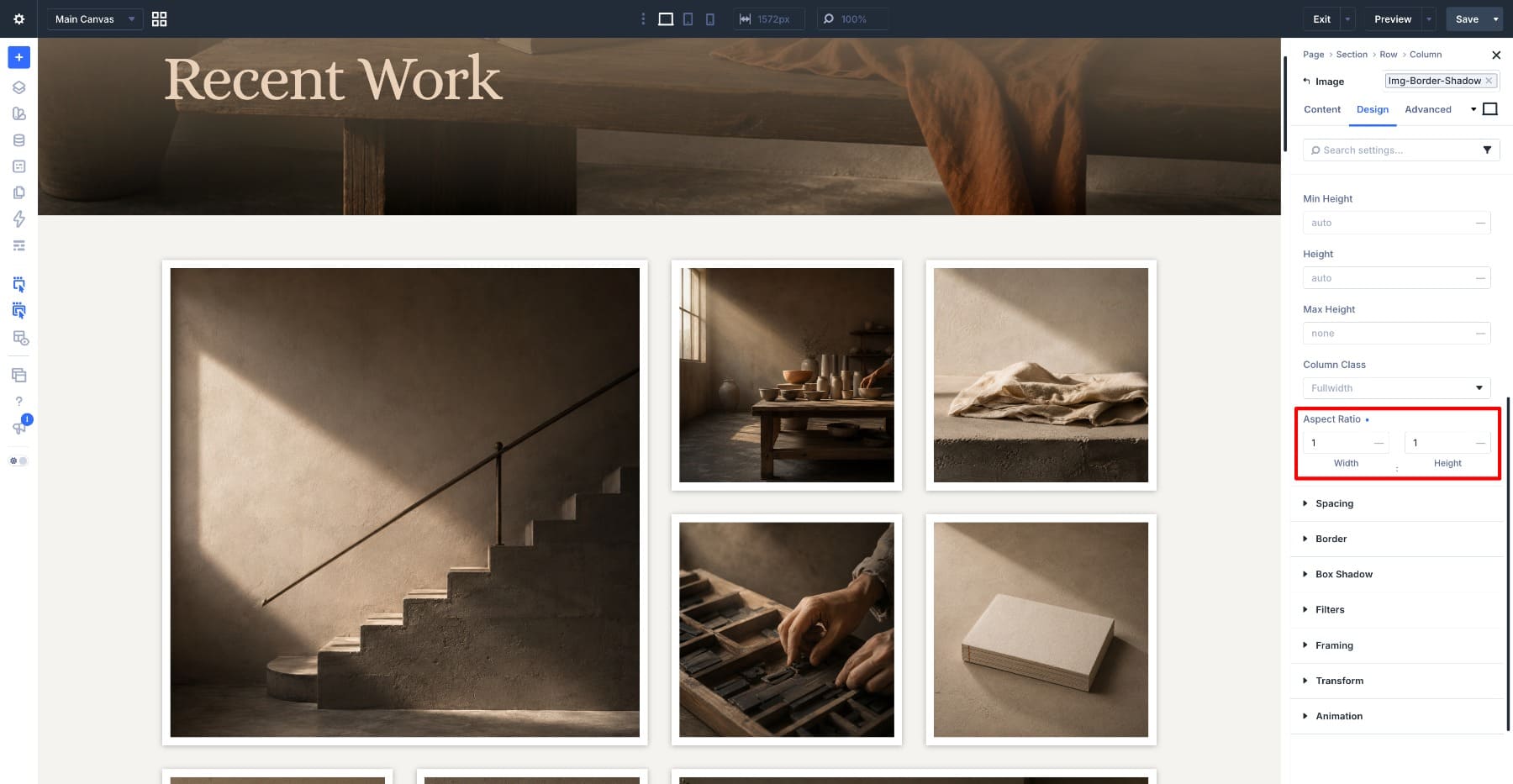

Open the principle Image module, cross to Design > Sizing, and set Aspect Ratio to 1:1 for the large opening image.
Continue all the way through the feature positions the usage of the proportions designed for this gallery. Set items 6 and 7 to 1:2, products 8 to 1:1, and products 10 to 2:1. The remainder single positions can keep the ratio that works for their provide photos and available grid tracks.
When a ratio differs from the provision {{photograph}}, open Framing and set Object Fit to Cover. Cover fills the defined frame without stretching the image, while Object Position means that you can control which part of the {{photograph}} remains visible when cropping occurs.
Pay particular attention to portraits, faces, construction, or other photos with an evident focal point. The Grid supplies each image a sort, on the other hand Framing is what lets in you to protect the part of the {{photograph}} that problems inside that shape.
Step 6: Modify The Grid For Tablet And Phone
The desktop gallery makes use of four columns and larger gaps, so the overall step is adapting the development for smaller displays. Grid settings are responsive in Divi 5, which means that that you simply’ll be capable of simplify the layout at each breakpoint without changing the desktop design.
Switch to Tablet view, open the Row settings, and cross to Design. In Sizing, set Width to 88% and Max Width to None. Then open the Grid Editor and reduce every Horz. Hollow and Vert. Hollow from 30px to 10px, giving the photographs more room at the narrower width.
Switch to Phone and simplify the Grid to 1 column. Given that desktop layout contains Grid Offset Rules with multi-column and multi-row spans, evaluate those rules at the phone breakpoint as neatly and override any spans that no longer belong throughout the single-column style. The aim on phone is a clean vertical gallery where every image can use the available width as a substitute of having a look to care for the additional sophisticated desktop development.
Divi’s responsive values cascade from upper breakpoints into smaller ones until you override them, so at all times inspect Tablet and Phone after changing the desktop Grid. In this example, the 10px tablet gaps can continue into phone, while the column depend and Offset Rules download their own cell treatment.
Assemble Your Grids Visually In Divi 5
The CSS Grid Editor supplies Divi 5‘s provide Grid device a much more visual workflow. Columns, rows, gaps, track sizes, products placement, and Grid Offset Rules are nevertheless part of the equivalent underlying layout device, on the other hand you’ll be capable of now see and manipulate that building right away as a substitute of working via settings alone.
Our finished gallery is a smart example of why that problems. The twelve photos can trade, the modules can also be modified, and the equivalent container would possibly in the end be hooked up to the Loop Builder, on the other hand the asymmetric building remains defined at the mom or father level.
That separation makes the Grid Editor useful previous galleries. You’ll be capable of use the equivalent method for portfolio layouts, crew directories, product collections, feature sections, editorial feeds, and dynamic loops: assemble the shape visually, let the container private the development, and then come to a decision what content material subject material must fill it.
