A blog grid can look utterly aligned while you’re designing it with placeholder content material subject matter, then fall apart as soon as exact posts get began loading in. One creator uploads a big screenshot, any other uses a portrait image, and any individual else supplies a sq. image from the logo library. The card design stays the identical, alternatively the image proportions don’t.

Divi 5’s Facet Ratio and Framing settings transparent up that in an instant all over the builder. You define the frame once on the card, make a decision how footage will have to fill it, and each and every featured image pulled into the loop follows the identical visual rules without changing the original data in your Media Library. We’ll assemble the blog loop with the Loop Builder first, then follow the image settings that keep the finished grid consistent.

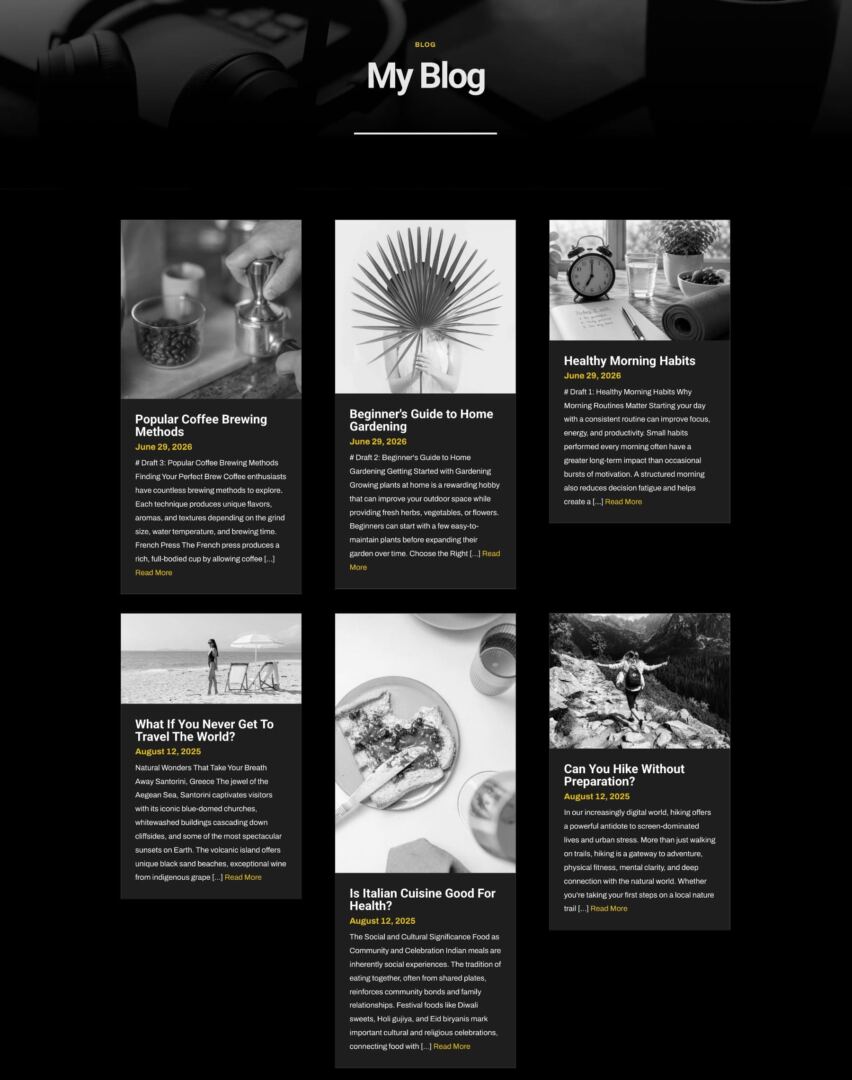

Why Loop Images Damage A Grid

No one uploading a featured image is basically fascinated by the proportions of your archive grid. A writer grabs the screenshot that illustrates their stage, a contributor sends a portrait right away from their phone, and a clothier exports a sq. from the logo apparatus.

Product catalogs run into the identical drawback when photos arrive from different suppliers, every the usage of a novel setup. The loop pulls all the ones data into the identical card design, so and now not the use of a shared image frame, the construction inherits regardless of shape every upload came about to have.

Manually making in a position each and every image can artwork while the archive is small, alternatively it becomes any other upkeep procedure for the reason that website online grows. Further importantly, if the construction changes later, a crop that used to be as soon as in a position specifically for the out of date design would most likely want to be recreated.

The loop gives us somewhere upper to control that decision. We design one card, Divi repeats it for each and every products returned by way of the query, and the settings applied to that card repeat with it. Aspect Ratio and Framing permit us to stipulate the image treatment at the template level instead of adjusting every provide image personally.

What Aspect Ratio And Framing Do

The two settings transparent up different parts of the identical drawback. Aspect Ratio lives throughout the Sizing chance personnel and defines the proportions of the element. Framing controls how an image behaves all over the rendered frame. Once each and every are configured, the original upload dimensions now not come to a decision how so much space every image occupies throughout the loop.

Aspect Ratio Devices The Frame

Aspect ratio describes the relationship between width and most sensible. A 16:9 element is 16 units huge for each and every 9 units tall, giving it a widescreen shape. A 1:1 element is sq., while 3:4 creates a portrait-oriented frame.

Thru default, an image follows the proportions of its provide document. The Aspect Ratio setting gives the module a defined shape instead. Set each and every loop image to 4:3, for example, and a portrait {{photograph}}, sq. graphic, and big screenshot all occupy the identical proportional space in their respective enjoying playing cards.

On account of Divi calculates the element’s most sensible from its rendered width, the proportion continues to hold for the reason that construction gets wider or narrower.

Object Fit Decides How The Image Fills The Frame

As quickly because the frame has a defined shape, the image itself has to fit within it. If the availability image already fits the chosen ratio, there’s very little to get to the bottom of. When the availability and frame produce other proportions, Object Fit determines how the two have interaction.

You’ll find Object Fit underneath Design > Framing. In modules where the image is a sub-element, an identical to Explicit particular person or Blurb, the identical controls appear all over the corresponding Image chance personnel. 5 values are available:

• Fill: The default. The image stretches to fill the frame exactly, which is in a position to distort it when the availability and frame use different proportions.
• Cover: The image scales until the frame is completely crammed while holding its distinctive proportions. The rest that extends earlier the frame is cropped. This is maximum ceaselessly some of the useful chance for blog thumbnails and other photographic loop footage.
• Include: Your whole image remains visible and keeps its proportions, alternatively unused space would most likely appear along two facets of the frame. This works smartly for logos, diagrams, and product imagery where cropping would remove crucial wisdom.
• None: The image displays at its intrinsic measurement without being scaled to fit. Depending on the courting between the image and frame, it may be cropped or move away empty space.
• Scale Down: Behaves like None when the image is already smaller than the frame and like Include when the image will have to be reduced to fit.

Object Fit very best produces a visible trade when the image’s rendered dimensions vary from its intrinsic dimensions. Surroundings an Aspect Ratio is one not unusual option to create that difference, as is defining each and every a Width and Most sensible.

Object Position Chooses What Survives The Crop

Cover solves distortion by way of cropping, alternatively the default crop starts from the center. That works smartly when the subject is concentrated and less smartly when crucial content material subject matter sits against an edge. Portraits are an obvious example: when a tall portrait enters a big frame, the very best and bottom typically are trimmed, and the person’s face would most likely sit down down higher than the center.

Object Position shall we you decide which part of the availability image receives priority. The nine-point selector accommodates Very best Left, Very best Middle, Very best Right kind, Middle Left, Middle, Middle Right kind, Bottom Left, Bottom Middle, and Bottom Right kind. You’ll moreover enter custom designed horizontal and vertical values when a type of anchors isn’t exact enough.

For a loop, needless to say the identical Object Position repeats all over each and every image the usage of that template. Very best Middle could be very best when most featured footage come with people, while Middle is without end extra protected for a blended editorial archive. Check out the surroundings against various posts relatively than judging it from very best the main card.

All of this happens at display time. The provision image throughout the Media Library remains untouched, so that you’ll trade the Aspect Ratio, Object Fit, or Object Position later and let all of the loop adopt the new treatment.

Assemble The Blog Loop

Now we’ll put those controls into a real dynamic construction. We’ll assemble the grid, design one publish card, connect it to reside publish data, and let Divi repeat it. Our Loop Builder educational goes deeper into the query system, so we’ll keep this phase focused on the development sought after for the image workflow.

1. Add A Grid Row

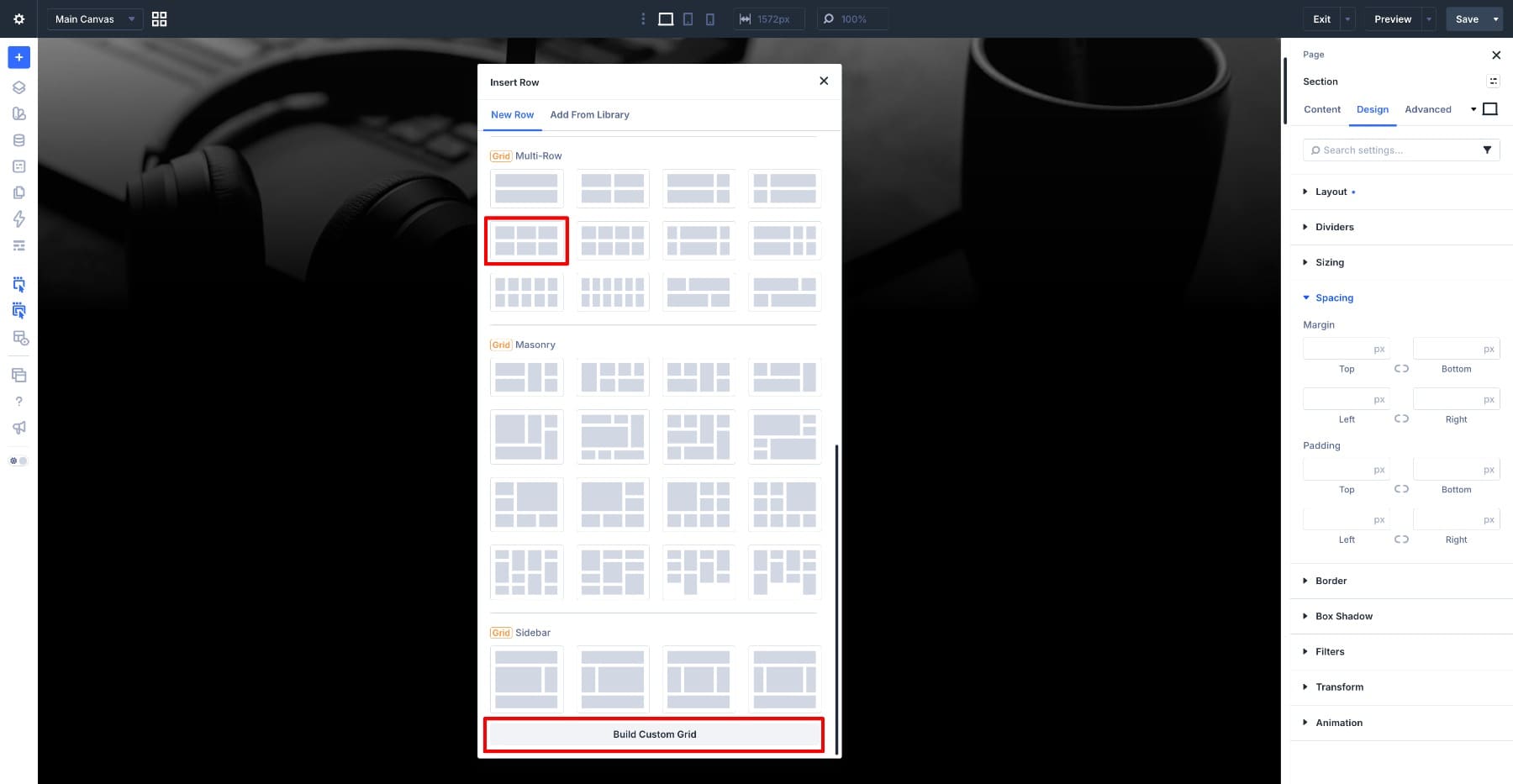

Open your blog template throughout the Divi Builder and add a brand spanking new Segment. The Row picker accommodates familiar structures alongside Grid layouts. Choose the development closest to what you wish to have, or choose Assemble Custom designed Grid when you wish to have to stipulate the tracks yourself.

With the Row made up our minds on, click on on Open Grid Editor. The Grid Editor will provide you with a visual field of the container’s columns, rows, gaps, and products placement. You’ll add or remove tracks, resize them, adjust gaps, and create additional advanced arrangements the usage of Grid Offset Rules while the underlying construction remains stored on the dad or mum container.

Delete each and every Column apart from the main. We very best need one card development because the Loop will repeat that Column for each and every publish returned by way of the query.

2. Allow Loop

Make a selection the remaining Column and open its Content material subject matter tab. To seek out the Loop chance and allow it. Divi now treats that Column for the reason that repeating products and places every generated instance into the Grid in keeping with the dad or mum Row’s construction.

The query settings appear beneath the Loop chance. For this blog document, we’re the usage of:

• Post Sort: Posts
• Posts Consistent with Internet web page: 10
• Order Thru: Date
• Order: Descending
• Post Offset: 0

Those settings come to a decision which posts Divi returns and in what order. The design we create all over the Column determines how every end result appears to be.

3. Assemble The Post Card

Add a Personnel all over the Column to hold all of the card. Place an Image module within it for the featured image, then add any other Personnel underneath the image to incorporate the publish wisdom.

Inside the second Personnel, add 3 modules: a Heading for the publish establish, any other Heading for the published date, and a Text module for the excerpt.

Style The Groups

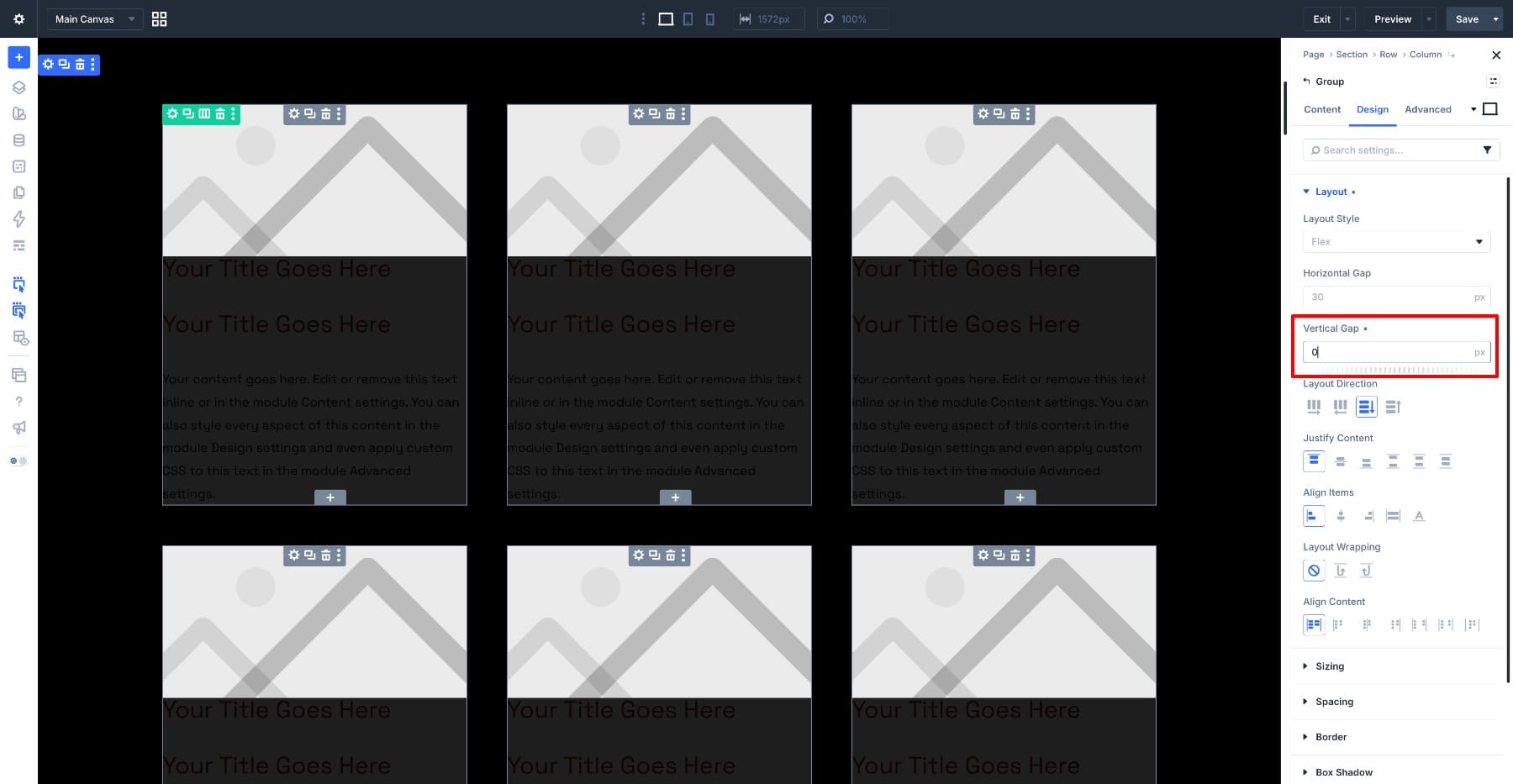

Open the outer Personnel and set Vertical Hollow to 0. Getting rid of the distance shall we the image and text space be informed as one secure card.

Open the interior Personnel and set its background to #1e1e1e. Set Vertical Hollow to 10px, then add 25px of best and bottom Padding and 20px on the left and correct.

Style The Text

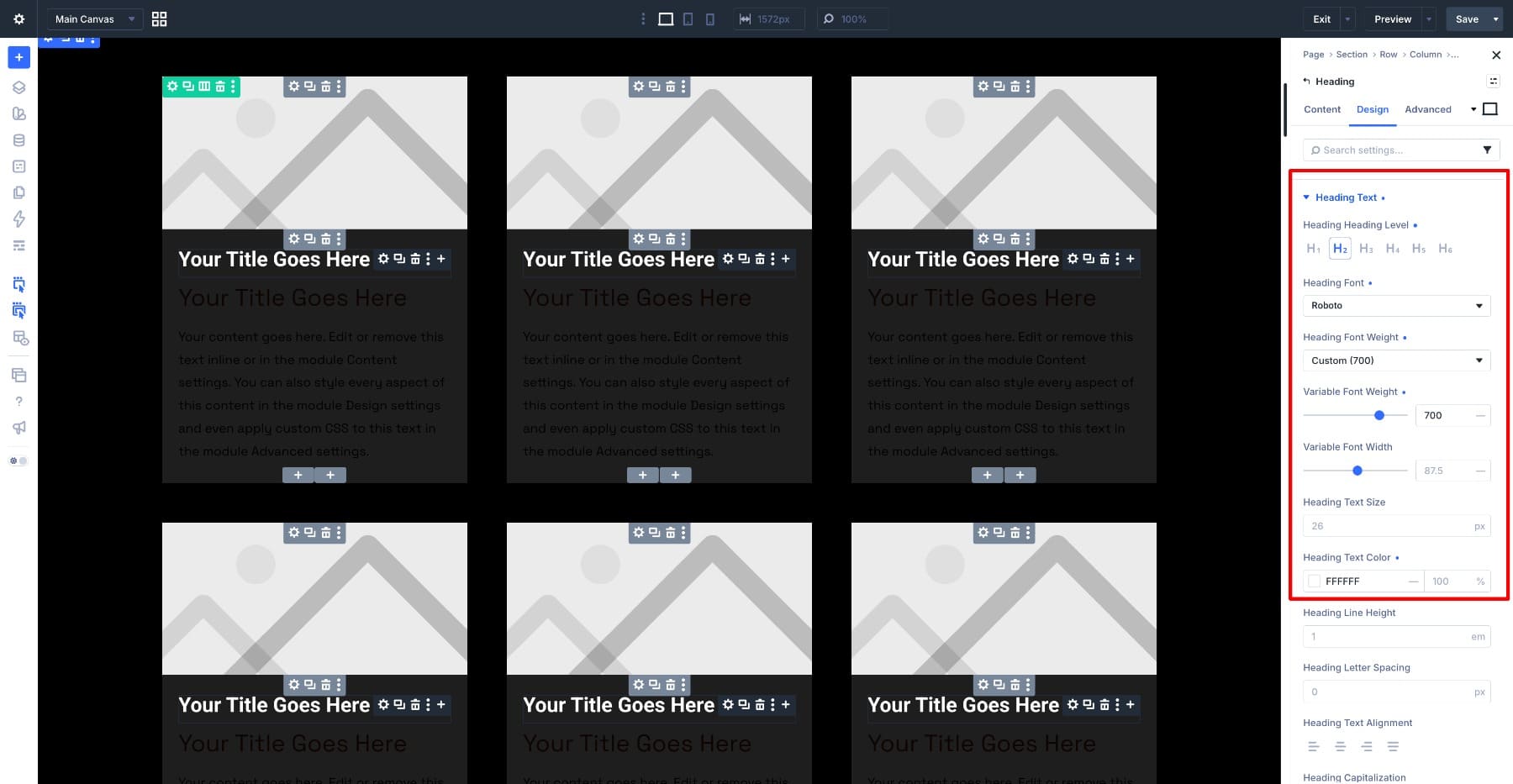

For the publish establish, set the Heading Level to H2 and use Roboto at a Weight of 700, Width of 87.5, and Measurement of 26px in white.

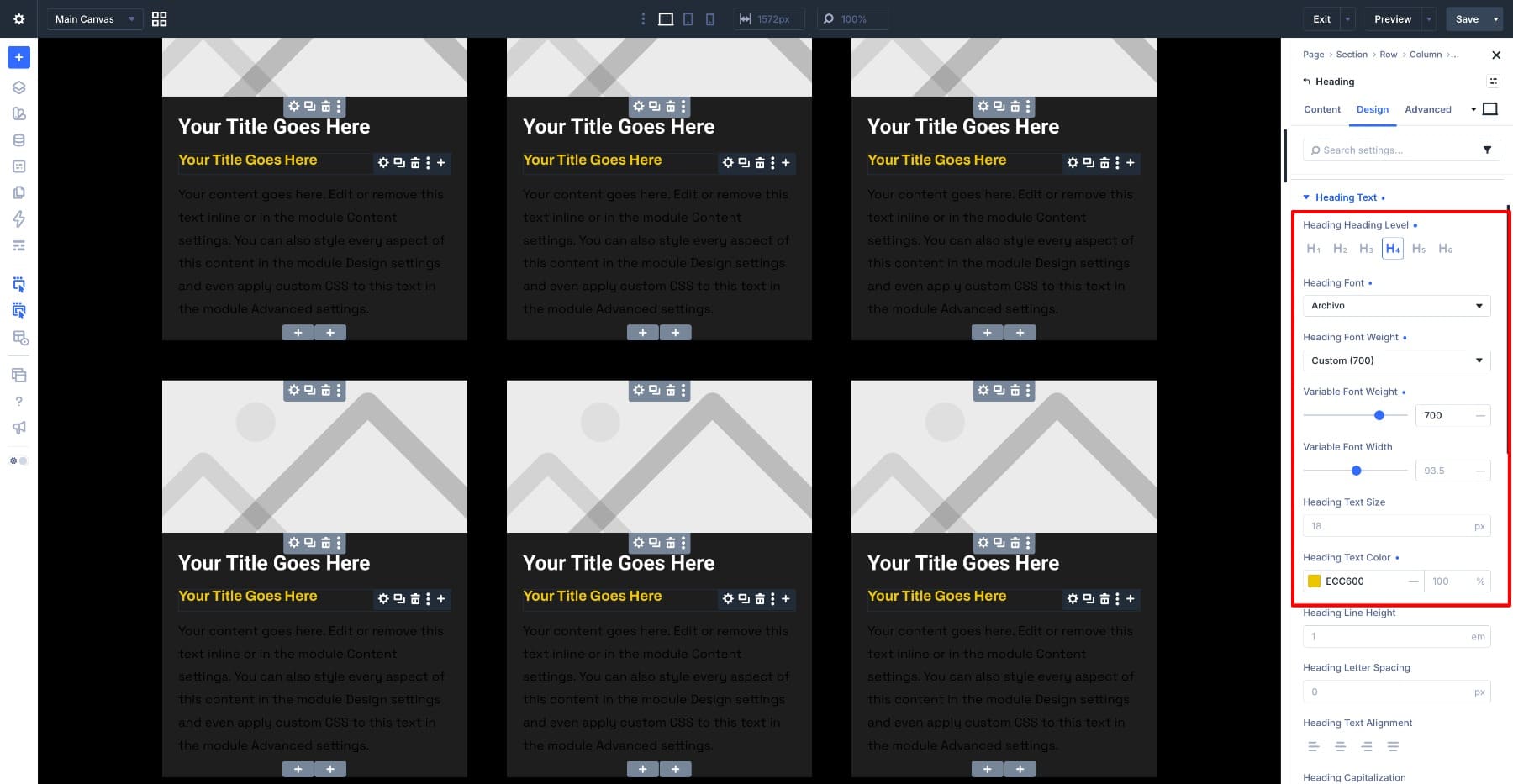

Set the date to Heading Level H4 the usage of Archivo at Weight 700, Width 93.5, and Measurement 18px. Use #ECC600 for the color.

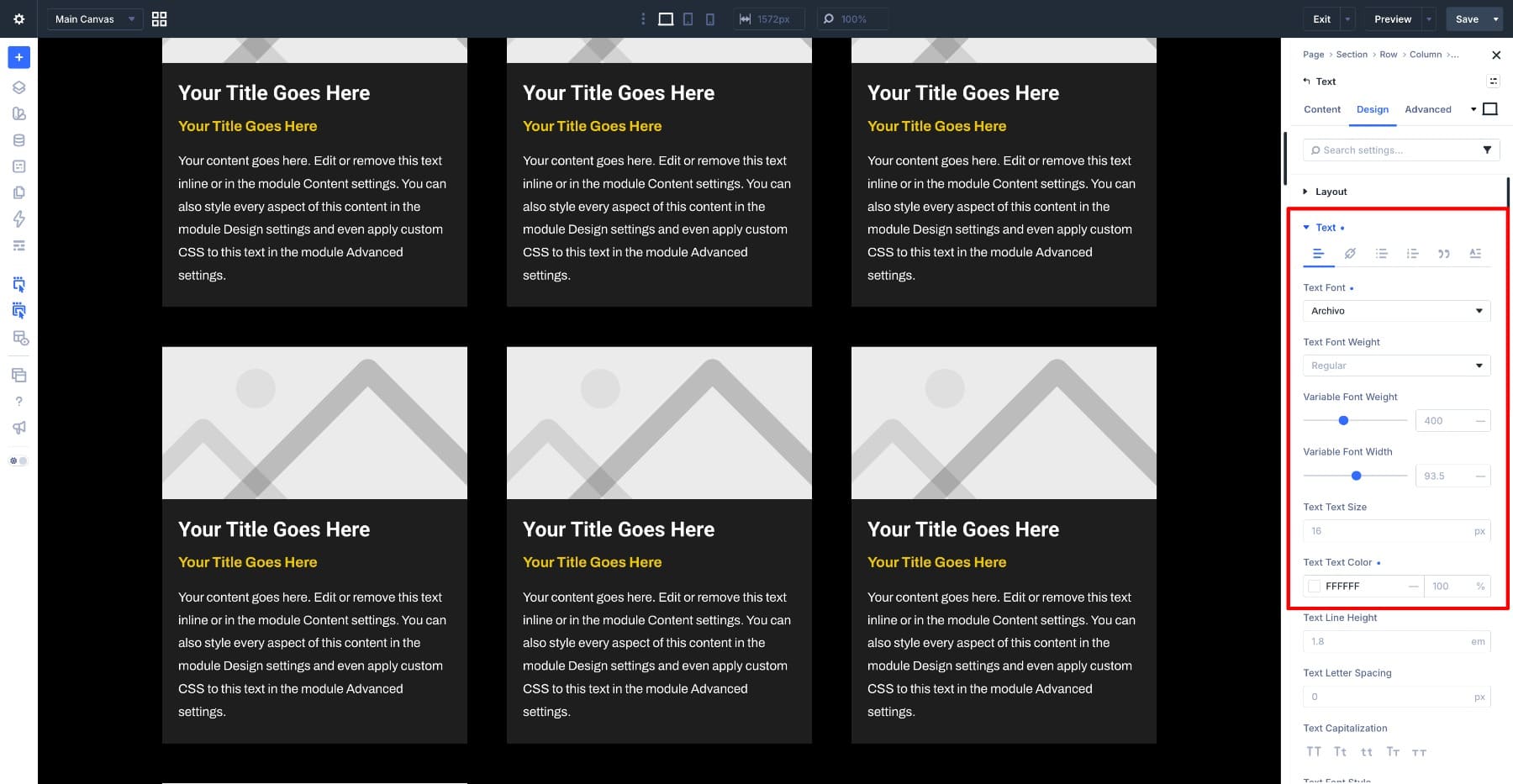

Give the excerpt the matching supporting typography used throughout the design so the date and summary sit down down cohesively beneath the establish.

4. Connect The Dynamic Content material subject matter

The card is designed, alternatively its contents are nevertheless placeholders. Dynamic Content material subject matter is what connects every module to the publish represented by way of that Loop products. Hover over the sphere you wish to have to populate, click on at the Dynamic Content material subject matter icon, and choose the corresponding Loop price:

• Image: Loop Featured Image
• First Heading: Loop Post Title
• 2nd Heading: Loop Published Date
• Text: Loop Post Excerpt

While configuring the excerpt, set its Word Rely to 50 so unusually long summaries don’t dominate particular person enjoying playing cards. You’ll moreover add Be informed Further text to make the holiday spot clearer. If its link styling uses one in every of your Design Variables or Presets, the card remains connected to the wider design system relatively than relying on any other one-off price.

In the end, use Loop Post Link for the linked link fields on the Image, establish, and supporting content material subject matter. Visitors can then prevail within the publish from the main parts of the card instead of depending on one small link.

5. Set The Aspect Ratio And Framing

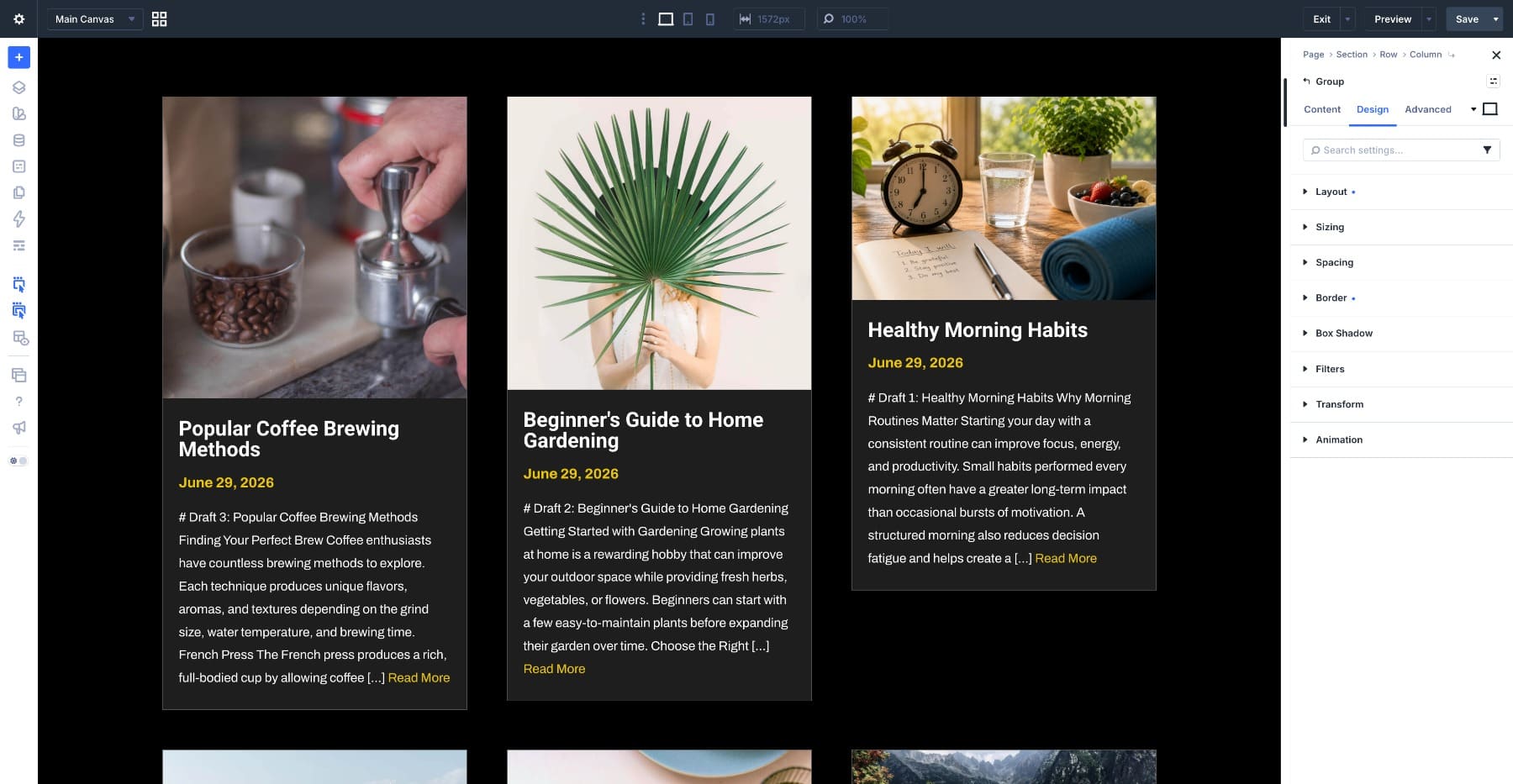

Now the actual featured footage are flowing into the Loop, which means that that their provide dimensions are visible throughout the grid. Portraits create tall enjoying playing cards, huge screenshots create fast ones, and the in moderation structured rows begin to lose their rhythm.

Open the Image module and pass to Design > Sizing. Set Aspect Ratio to 1:1. The Image module now reserves a sq. frame for each and every repeated publish, regardless of whether or not or now not the availability image is landscape, portrait, or sq..

The grid would most likely to begin with look worse on account of Fill is the default Object Fit price. The pictures are being stretched into those sq. dimensions. Open Framing within the identical Design tab and set Object Fit to Cover. The pictures now stay their proportions while filling all of the sq., and Divi plants very best the portions that extend outside the frame.

Cover begins from the existing Object Position, which is concentrated till you change it. Scroll via various exact posts while testing the available positions. One setting applies across the repeated Image module, so your best option is the person who works reliably across the collection relatively than utterly framing a single featured image.

If most of the website online’s imagery follows a continuing composition, an identical to portraits with faces on the subject of the very best, Very best Middle is typically a stronger default. For blended editorial footage, Middle is without end additional forgiving.

Now not mandatory: Save The Crop As An Image Preset

If this identical image treatment will appear in numerous loops, reserve it as an Image Preset instead of rebuilding the ratio and framing settings every time. Image chance groups in Divi 5 toughen Presets, so a reusable Blog Card Image preset might come with the Aspect Ratio, Object Fit, Object Position, Border, Box Shadow, Filters, and other shared image styling.

That also gives the crop system a central place to switch later. Change the Preset and the connected footage follow.

6. Level The Enjoying playing cards

The featured footage are consistent now, alternatively the overall enjoying playing cards would most likely nevertheless end at different heights because the amount of text varies from put as much as publish. There are two ways to implies that depending on whether or not or now not the card will have to follow a difficult and rapid proportion or adapt additional naturally to its contents.

For a deliberately proportioned card, open the outer Personnel and pass to Design > Sizing. Set an Aspect Ratio that fits the entire design, an identical to 3:4 or 4:5. On account of Aspect Ratio is available throughout the Sizing controls previous footage, the container itself can handle a proportional frame as its width changes.

You’ll follow a ratio to the interior text Personnel as smartly when the design calls for a tightly controlled image-to-content courting.

A suite card ratio means the available most sensible is decided by way of the width of the card, so all the time take a look at it with the longest sensible establish and excerpt throughout the Loop. If the content material subject matter needs more space than the proportion provides, a rigid ratio can become counterproductive.

For a additional content-driven selection, use Increase To Fill. When the loop items sit down down within a construction that gives every grid row a shared available most sensible, Increase To Fill shall we the card’s Personnel prolong into that space. Applying it thoughtfully to the outer card and the interior content material subject matter Personnel can have the same opinion the enjoying playing cards align while allowing their final most sensible to reply to the content material subject matter relatively than a difficult and rapid ratio.

The two approaches transparent up relatively different problems. Use Aspect Ratio when a difficult and rapid card silhouette is part of the design. Use Increase To Fill when an identical alignment problems more than forcing each and every card into one predetermined shape.

7. Keep an eye on The Grid For Smaller Presentations

3 columns artwork very easily on a desktop alternatively become cramped for the reason that available width decreases. Make a selection the Row, switch to the Tablet breakpoint, and open the Grid Editor. Reduce the construction to 2 columns, then switch to Phone and set it to 1 column.

In case you occur to stick the identical image Aspect Ratio at every breakpoint, the frame maintains that proportion for the reason that enjoying playing cards trade width. The image nevertheless scales with the construction, and Cover continues to crop the availability continuously all over the frame.

That may be a useful default, alternatively it isn’t your best option. Aspect Ratio, Object Fit, and Object Position can also download responsive values, which will provide you with room to switch the crop when the card itself changes dramatically.

Deciding on A Ratio That Fits The Structure

We used 1:1 on account of sq. thumbnails artwork smartly in this compact three-column design and offers each and every publish an an identical visual weight. The most efficient ratio is determined by the construction, the subject matter, and the images your participants if truth be told put up.

• 16:9: Works smartly for massive feature rows, editorial previews, video-oriented content material subject matter, and single-column lists where the image stretches all over most of the card.
• 4:3: A versatile variety for multi-column blog and portfolio grids. It gives pictures additional vertical room than 16:9 while cropping a lot much less aggressively than a sq..
• 1:1: Useful for compact grids, attached publish sections, directories, and card layouts where consistent visual weight problems. Because the crop is stronger, check footage with crucial details on the subject of the sides.
• 3:4 And 4:5: Artwork naturally for portraits, editorial footage, team participants, products, and other vertically composed imagery.
• 9:16: A much taller treatment this is sensible when the image itself is an important part of the content material subject matter experience relatively than a compact thumbnail.

You’ll moreover mix ratios intentionally when the construction incorporates distinct content material subject matter therapies. A separate featured-post Loop, for example, might use a big 16:9 image while the standard archive grid beneath it makes use of four:3 or 1:1.

Inside a single shared Loop template, however, the identical Image module settings repeat all over every products. If one particular position needs a novel crop, care for it as a deliberate construction variation relatively than manually changing one repeated card.

None of the ones conceivable alternatives lock you in. The ratio lives throughout the design settings, so that you’ll trade it later and preview the new crop all over the actual posts previous than committing to it.

Set A Different Ratio Consistent with Breakpoint

Protecting one ratio all over each and every show measurement is without end the cleanest chance, alternatively some layouts get pleasure from a responsive trade. A sq. image that feels balanced within a three-column desktop card can become very tall once the card expands to near to the overall width of a phone.

Aspect Ratio is responsive in Divi 5. Switch to the Phone breakpoint throughout the Image module and try a much broader frame an identical to 16:9 or 3:2. The mobile card becomes shorter, which shall we visitors see additional of the establish, excerpt, and surrounding posts without scrolling earlier a large sq. image first.

Object Fit and Object Position can also be adjusted responsively too. You do not need a novel Object Position simply because the ratio changed, so keep the shared price when it nevertheless frames the collection smartly. If the mobile ratio introduces a actually different crop drawback, however, a responsive Object Position override is available.

The crucial phase is to test the surroundings against various advisor posts. Very similar to the desktop crop, one responsive price is being repeated all over all of the Loop.

Not unusual Issues And Fixes

When a loop grid appears to be fallacious, the aim is maximum ceaselessly one in every of a handful of settings. Get began with what you’ll see and artwork backward.

• The Images Look Stretched: You put an Aspect Ratio alternatively Object Fit is still on Fill. Business it to Cover to stay the image proportions while filling the frame.
• Faces Are Being Cropped: Cover is working, alternatively the existing Object Position does not have compatibility the composition of the images. Check out Very best Middle for portrait-heavy content material subject matter or any other shared anchor that works across the collection.
• The Card Background Presentations Beside The Image: Object Fit is in all probability set to Include. Include preserves all of the provide image and would most likely move away unused space when its ratio does not have compatibility the frame. Use Cover when filling the frame problems more than holding each and every edge.
• One Image Turns out Comfy While The Others Look Sharp: The provision image may be smaller than the rendered frame, and Cover is scaling it previous its intrinsic dimensions. Resolve a smart minimum featured image measurement for participants.
• Now not the rest Changes When You Switch Object Fit: Object Fit needs a difference between the image’s rendered dimensions and intrinsic dimensions. Verify that the Aspect Ratio saved as it should be, or that each and every a custom designed Width and Most sensible are constraining the image.
• The Crop Works On One Post Alternatively Fails On Every other: The Loop repeats one Object Position. Check out Middle, Very best Middle, or any other shared position in opposition to a much broader trend of images. If one outlier continuously fails, fixing that offer image may be upper than compromising each and every other card.
• The Enjoying playing cards Nevertheless Finish At Different Heights: The pictures may be consistent while the content material subject matter isn’t. Review the excerpt length, fastened card Aspect Ratio, or Increase To Fill manner depending on how rigid you wish to have the card silhouette to be.

Assemble A Cleaner Blog Grid In Divi 5

Aspect Ratio and Framing are small settings with a much higher have an effect on after they sit down down within a Loop. You define the image frame once, Divi 5 repeats that decision all over each and every card, and a choice of unrelated provide footage starts behaving like one visual system.

The workflow moreover stays flexible. Business the ratio later and the repeated enjoying playing cards follow. Keep an eye on Object Position and the plants exchange without touching the uploads. Save the treatment as an Image Preset and the identical image system can switch into other blog feeds, portfolio grids, product loops, or related-post sections.

The Loop Builder handles the repetition. Aspect Ratio defines the shape. Framing decides how the images reside within it. Together, they let the construction stay consistent even though the content material subject matter feeding it isn’t.
